Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1117610 Refrigerator, Door Panel (almond) Appelez-nous -
1 1117559 Refrigerator, Door Panel (platinum) Appelez-nous -
1 1117558 Refrigerator, Door Panel (toast) Appelez-nous -
1 1117557 Refrigerator, Door Panel (white) Appelez-nous -
2 988402 Tap Plate Appelez-nous -
3 4318165 Door, Cam Upper   (Replaces: 986758) In-Stock Immediately $ 27.36

4 WP488921 Screw, 8 X 1/2   (Replaces: 488921) In-Stock Immediately $ 7.75

4 489221 Screw (repair) Appelez-nous -
5 1115906 Bracket, Door Stop Appelez-nous -
6 988421 Shim Appelez-nous -
8 509929 Cap, Hinge Appelez-nous -
9 534927 Hole Plug Appelez-nous -
10 836120 Retainer, Side Appelez-nous -
11 836121 Retainer, Top & Bottom Appelez-nous -
12 2188404A Door, Gasket   (Replaces: 939565) Special Order $ 269.26

13 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 7.85

13 WP489069 Screw, No.7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 7.86

14 1107215 Handle Center Appelez-nous -
16 1107651 Shim, Handle Center (2) Appelez-nous -
17 941242 Screw Anchor (2) Appelez-nous -
18 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 487909) In-Stock Immediately $ 7.79

19 1117548 Insert, Handle Appelez-nous -
21 1107241 Retainer, Insert Appelez-nous -
22 1107617 Retainer, Insert Appelez-nous -
23 1107341 End Cap (2) Appelez-nous -
26 00489248 Screw, 10-32 X 5/8   (Replaces: 489248) Special Order $ 38.59

27 1107268 Interior Door, Panel Appelez-nous -
28 1107915 Nameplate Appelez-nous -
32 1107289 Compartment Door Appelez-nous -
33 1107295 Shelf Ladder Appelez-nous -
34 537095 Clip, Expansion Appelez-nous -
35 489188 Screw, 8-15 X 1 1/4 (8) Appelez-nous -
36 1107352 Spacer, Shelf Appelez-nous -
39 1107284 Shelf, Door Cantilever Bin Appelez-nous -
40 1107310 Cantilever, Door Shelf Appelez-nous -
41 520747 Tray, Butter Appelez-nous -
42 WP1104787 Shim, Door Closer Cam   (Replaces: 1104787) Special Order $ 7.58


    View Diagram in Separate Window     Print Icon   Print Part List

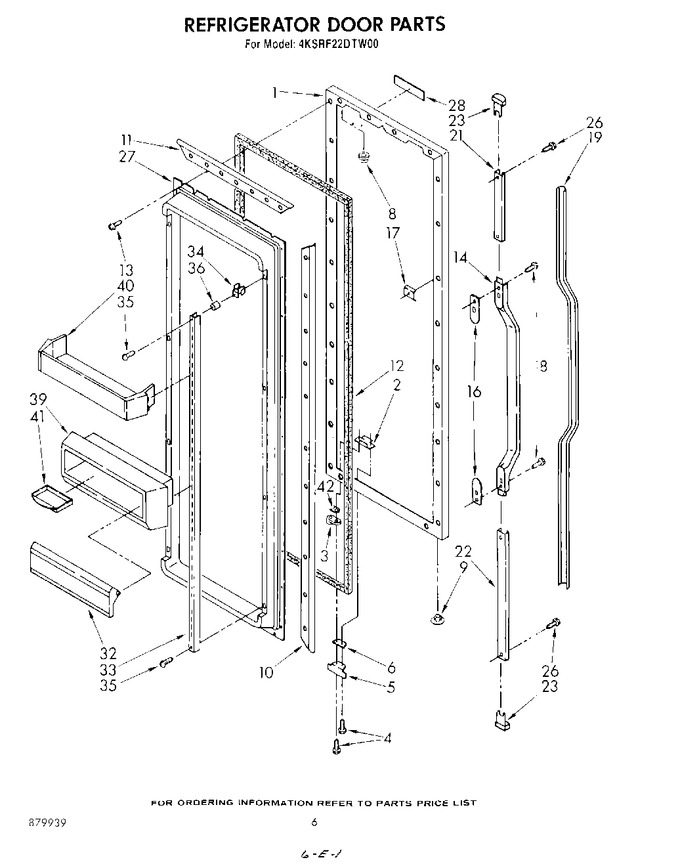

Diagram for 4KSRF22DTW00
