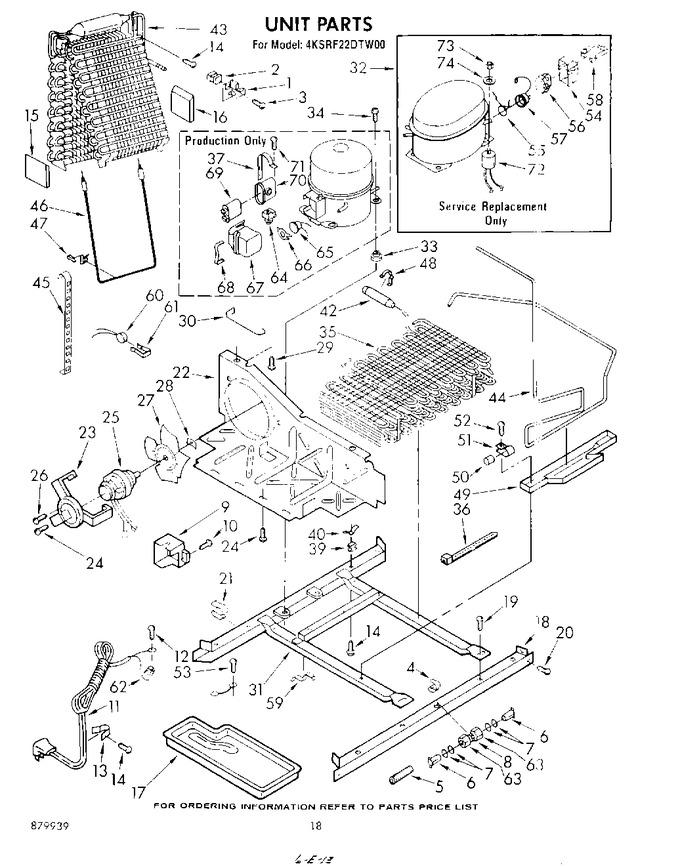

10 - Unit


11 - Ice Maker


12 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842436		Support, Evaporator		Appelez-nous	-
2	944454		Screw, Grommet		Appelez-nous	-
3	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 7.85
4	934011		Clip, Water Tube (2)		Appelez-nous	-
5	983659		Spring, Tube Forming		Appelez-nous	-
6	4387491		Insert, Plastic Tube (2)   (Replaces: 841707)				$ 7.84
7	488794		``o`` Ring Seal (4)		Appelez-nous	-
8	WP4211117		Union   (Replaces: 489098)				$ 9.96
9	850482		Box, Junction		Appelez-nous	-
10	WP488729		Screw, 8 X 1/2   (Replaces: 486993)			Immediately	$ 7.79
11	941586		Cord, Service		Appelez-nous	-
12	488474		Screw, 8-32 X 3/8		Appelez-nous	-
13	549193		Clamp-service Cord				$ 13.39
14	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
15	652985		Baffle, Evaporator		Appelez-nous	-
16	849335		Air Baffle		Appelez-nous	-
17	849331		Tray, Evaporator		Appelez-nous	-
18	548662		Front, Rail		Appelez-nous	-
19	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
20	489035		Screw (repair)		Appelez-nous	-
20	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
21	548745		Clip, Wire (2)		Appelez-nous	-
22	850391		Air Baffle		Appelez-nous	-
23	548695		Bracket, Motor		Appelez-nous	-
24	488624		Screw, 8 X 3/8 (7)		Appelez-nous	-
25	833697		Fan, Motor   (Replaces: 946539)			Immediately	$ 88.15
26	681390		Screw, 8-32 X 3/8 (3)   (Replaces: 489019)				$ 13.06
27	989524		Fan, Blade		Appelez-nous	-
28	WP486692		Speednut, 1/4-20   (Replaces: 486692)				$ 7.82
29	488978		Screw, 8-15 X 3/8		Appelez-nous	-
30	850156		Guard, Fan		Appelez-nous	-
31	945463		Frame		Appelez-nous	-
32	482982		Compressor Kit (includes Items 54, 55, 56, 57, 58, 72, 73 & 74) (also Order 876765 Tube Kit)		Appelez-nous	-
33	876811		Grommet (4)   (Replaces: 1108038)				$ 7.42
34	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.42
35	943480		Condenser & Precooler Assembly		Appelez-nous	-
36	851095		Strap		Appelez-nous	-
37	1101184		Clamp, Capacitor		Appelez-nous	-
39	943447		Grommet Mounting		Appelez-nous	-
40	548738		Clamp, Mounting		Appelez-nous	-
42	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 52.57
43	1101078		Evaporator		Appelez-nous	-
44	1100809		Exchanger, Heat		Appelez-nous	-
45	850568		Heat Shield (2)		Appelez-nous	-
46	WP549433		Heater, Defrost   (Replaces: 934445)				$ 167.36
47	549419		Heater, Clamp (4)		Appelez-nous	-
48	548508		Drier, Clamp		Appelez-nous	-
49	945572		Pan, Drip		Appelez-nous	-
50	510769		Dampener (2)		Appelez-nous	-
51	510716		Tube Clamp (2)		Appelez-nous	-
52	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 21.16
53	303776		Screw, 8-32 X 5/16 (2)   (Replaces: 488879)		Appelez-nous	-
54	1105015		Relay, Case		Appelez-nous	-
55	1114190		Overload Spring		Appelez-nous	-
56	WP2262181		Relay   (Replaces: 1108143)				$ 122.65
57	483054		Overload		Appelez-nous	-
58	938384		Strap, Cover		Appelez-nous	-
59	548744		Clip (2)		Appelez-nous	-
60	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 103.80
61	513584		Clamp		Appelez-nous	-
62	227991		Wire Connector		Appelez-nous	-
63	WP245183		Nut, Ball Sleeve   (Replaces: 487857)				$ 7.79
64	945535		Relay		Appelez-nous	-
65	1108054		Overload		Appelez-nous	-
66	943494		Overload Spring		Appelez-nous	-
67	943496		Terminal Cover		Appelez-nous	-
68	943497		Terminal Cover Strap		Appelez-nous	-
69	1118764		Running Capacitor		Appelez-nous	-
70	1108046		Cover, Capacitor		Appelez-nous	-
71	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 10.88
72	482996		Capacitor		Appelez-nous	-
73	489142		Nut		Appelez-nous	-
74	876764		Valve, Access(3/16``)			Immediately	$ 91.35
74	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
74	978029		Valve Access (5/8``)				$ 93.85
74	978030		Valve, Access (3/4``)				$ 130.71
74	489143		Washer		Appelez-nous	-
74	978026		Valve, Access (5/16``)			Immediately	$ 128.09
74	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
74	978028		Valve, Access (1/2)		Appelez-nous	-
