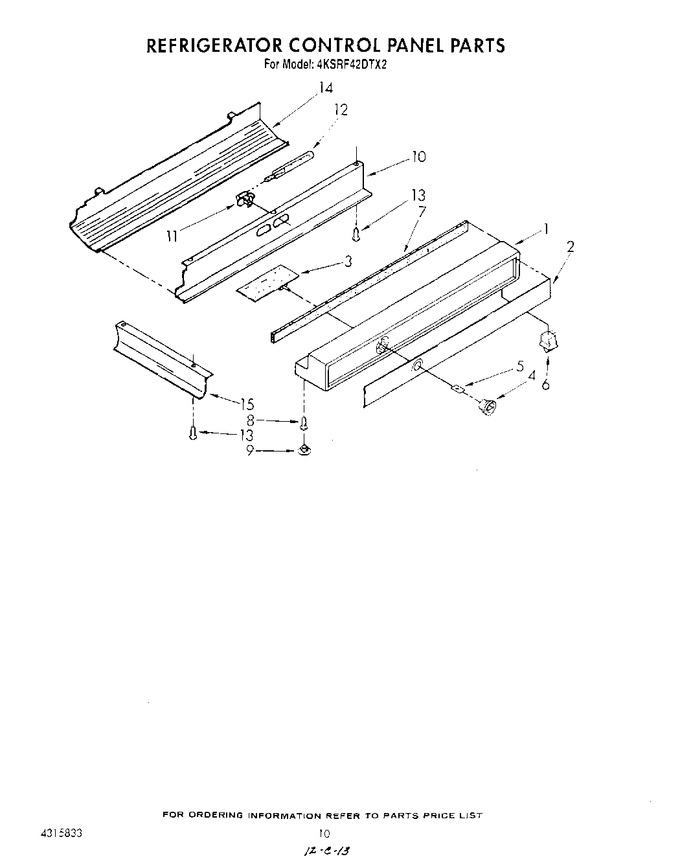

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1112641 | Control Panel |
|
- | |||||
| 2 | 1113379 | Inlay, Control Panel |
|
- | |||||
| 3 | 1113390 | Circuit Board |
|
- | |||||
| 4 | 1116853 | Knob, Air Control |
|
- | |||||
| 5 | 837444 | Knob, Retainer |
|
- | |||||
| 6 | W11384469 | Switch, Rocker Arm (Replaces: 549702) |
|
Immediately | $ 37.23 | ||||
| 7 | 1113135 | Seal, Control Panel |
|
- | |||||
| 8 | 489260 | Screw (3) |
|
- | |||||
| 9 | 534927 | Hole Plug (3) |
|
- | |||||
| 10 | 1112656 | Shield, Control Panel |
|
- | |||||
| 11 | 1112613 | Socket, Light (2) |
|
- | |||||
| 12 | WP548049 | Light Bulb (2) (Replaces: 547225) |
|
$ 86.35 | |||||
| 13 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 7.85 | ||||
| 13 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 14 | 1112661 | Lens |
|
- | |||||
| 15 | 1112708 | Channel, Wiring |
|
- |
