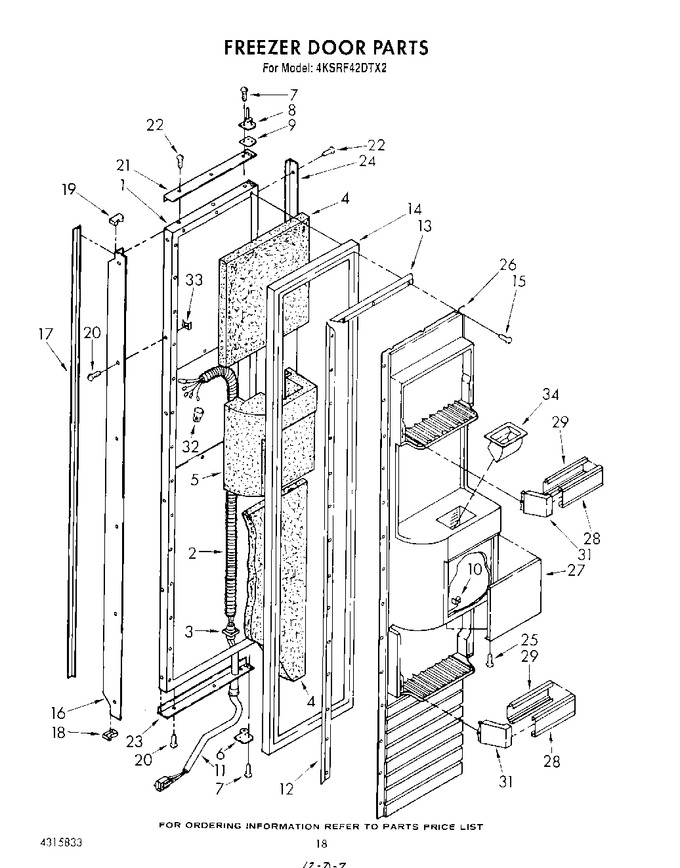

12 - Freezer Door


13 - Dispenser And Front


14 - Upper Unit


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Ice Maker


18 - Top Grille And Unit Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112433		Exterior Door Panel, Freezer (also Order Item 4)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
4	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
5	1112978		Insulation, Dispenser		Appelez-nous	-
6	1112916		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	1112944		Hinge, Top		Appelez-nous	-
9	1112940		Spacer Plate		Appelez-nous	-
10	537095		Clip, Expansion (2)		Appelez-nous	-
11	1112951		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188496A		Door Gasket, Magnetic   (Replaces: 1112547)				$ 332.76
15	WP488729		Screw (repair)   (Replaces: 488907)			Immediately	$ 7.79
15	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 7.86
16	1112508		Handle, Door		Appelez-nous	-
17	1112510		Insert, Handle		Appelez-nous	-
18	1107844		End Cap, Bottom		Appelez-nous	-
19	1107849		End Cap, Top		Appelez-nous	-
20	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 7.79
21	1112485		Trim (top)		Appelez-nous	-
22	489112		Screw, 6-32 X 1/2		Appelez-nous	-
23	1112494		Trim (bottom)		Appelez-nous	-
24	1112480		Trim (side)		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 488320)			Immediately	$ 7.79
26	1112523		Panel, Interior Door		Appelez-nous	-
27	1113171		Overlay, Panel		Appelez-nous	-
28	WP2003128		Door Shelf, Outer Trim   (Replaces: 1124004)				$ 216.42
29	1112771		Door Shelf, Inner Trim		Appelez-nous	-
31	1112763		Support, Trim Ends				$ 32.70
32	227991		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
34	1112554		Ice Chute		Appelez-nous	-
