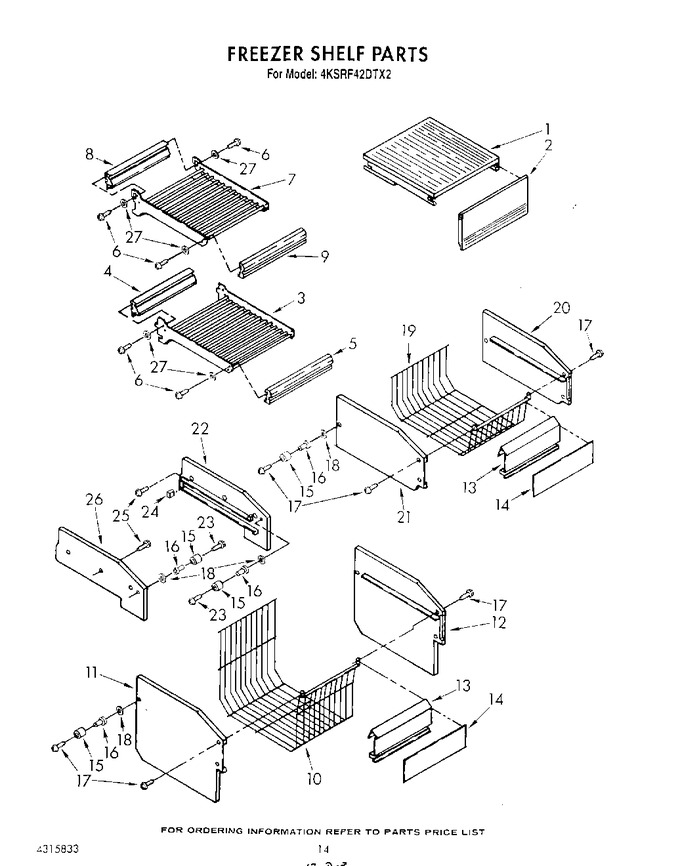

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1112366 | Solid Shelf |
|
- | |||||
| 2 | 1112394 | Front, Ice Compartment |
|
- | |||||
| 3 | 1112341 | Shelf, Fixed (2) |
|
- | |||||
| 4 | 1112349 | Reflector, Shelf |
|
- | |||||
| 5 | 1112359 | Trim, Shelf |
|
- | |||||
| 6 | 489210 | Screw, 6-32 X 1/2 |
|
- | |||||
| 7 | 1112361 | Shelf, Cantilever |
|
- | |||||
| 8 | 1112346 | Reflector, Shelf |
|
- | |||||
| 9 | 1112351 | Trim, Shelf |
|
- | |||||
| 10 | 1112306 | Basket (large) |
|
- | |||||
| 11 | 1112310 | Side, Basket (left Side) |
|
- | |||||
| 12 | 1112311 | Side, Basket (right Side) |
|
- | |||||
| 13 | 1112316 | Front, Basket |
|
- | |||||
| 14 | 1112321 | Overlay, Front |
|
- | |||||
| 15 | 1112638 | Roller |
|
- | |||||
| 16 | 1112639 | Eyelet, Roller |
|
- | |||||
| 17 | WP489261 | Screw (repair) (Replaces: 489261) |
|
$ 7.61 | |||||
| 17 | WPW10272364 | Screw, 10-16 X 3/4 (Replaces: 489211) |
|
Immediately | $ 10.82 | ||||
| 18 | 488307 | Washer |
|
- | |||||
| 19 | 1112336 | Basket (small) |
|
- | |||||
| 20 | 1112312 | Side, Basket (left Side) |
|
- | |||||
| 21 | 1112313 | Side, Basket (right Side) |
|
- | |||||
| 22 | 1112296 | Basket Spacer, Right Side (2) |
|
- | |||||
| 23 | WP489261 | Screw (repair) (Replaces: 489261) |
|
$ 7.61 | |||||
| 23 | WP489261 | Screw, 10-16 X 5/8 (Replaces: 489212) |
|
$ 7.61 | |||||
| 24 | 1113169 | Stop, Roller |
|
$ 11.28 | |||||
| 25 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 25 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 7.85 | ||||
| 26 | 1112295 | Basket Spacer, Left Side (2) |
|
- | |||||
| 27 | 1113286 | Spacer, Shelf |
|
- |
