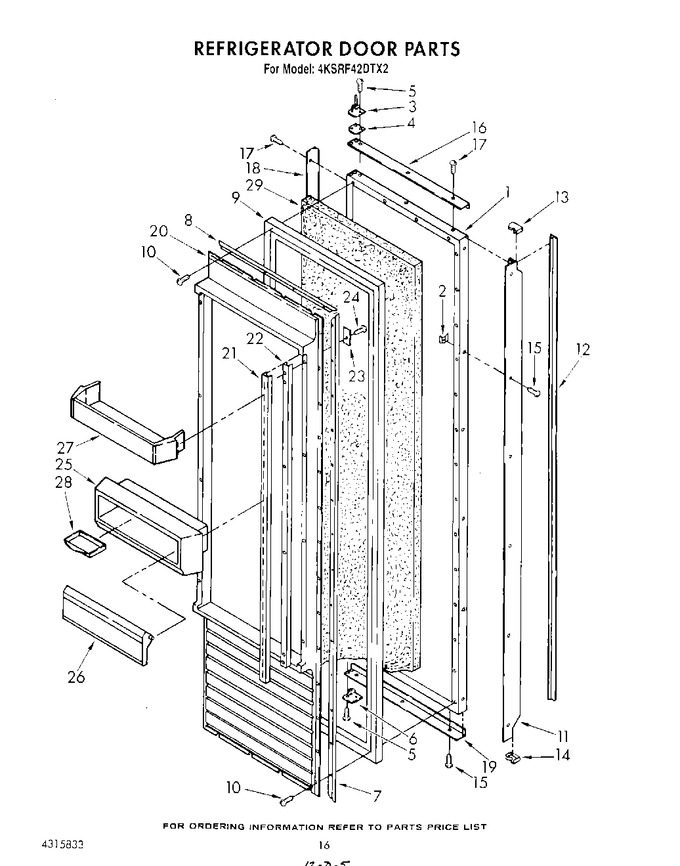

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112426		Door Panel, Refrigerator (also Order Item 29)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.88
3	1112945		Hinge Assembly, Top		Appelez-nous	-
4	1112940		Spacer		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	1112921		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112541		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	1112548		Door Gasket, Magnetic		Appelez-nous	-
10	WP489069		Screw, 7 X 1/2 (36)   (Replaces: 489101)			Immediately	$ 8.40
10	WP488729		Screw (repair)   (Replaces: 488907)			Immediately	$ 8.28
11	1112508		Handle, Door		Appelez-nous	-
12	1112510		Insert, Door Handle		Appelez-nous	-
13	1107844		End Cap, Top		Appelez-nous	-
14	1107849		End Cap, Bottom		Appelez-nous	-
15	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 8.28
16	1112490		Trim (top)		Appelez-nous	-
17	489112		Screw, 6-32 X 1/2		Appelez-nous	-
18	1112480		Trim (side)		Appelez-nous	-
19	1112499		Trim (bottom)		Appelez-nous	-
20	1112516		Panel, Interior Door		Appelez-nous	-
21	1112527		Ladder, Shelf (2)		Appelez-nous	-
22	1112530		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
24	WP681414		Screw (repair)   (Replaces: 488908)			Immediately	$ 8.47
25	1112721		Bin, Utility		Appelez-nous	-
26	1112736		Door, Utility Bin		Appelez-nous	-
27	1112741		Door Shelf (4)		Appelez-nous	-
28	520747		Tray, Butter		Appelez-nous	-
29	4210569		Front Panel Kit (black)		Appelez-nous	-
29	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
29	4210545		Top Grille Trim Kit (8``)		Appelez-nous	-
29	4210546		Top Grille Trim Kit (7-1/2``)		Appelez-nous	-
29	4210570		Front Panel Kit (white)		Appelez-nous	-
29	4210568		Front Panel Kit (almond)		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT1113440		Use & Care Guide		Appelez-nous	-
	LIT4315833		Parts List		Appelez-nous	-
	978849		Black Acrylic Static Cleaner Part				$ 15.82
	LIT1113447		Service & Wiring Sheet		Appelez-nous	-
	LIT1113416		Energy Label		Appelez-nous	-
