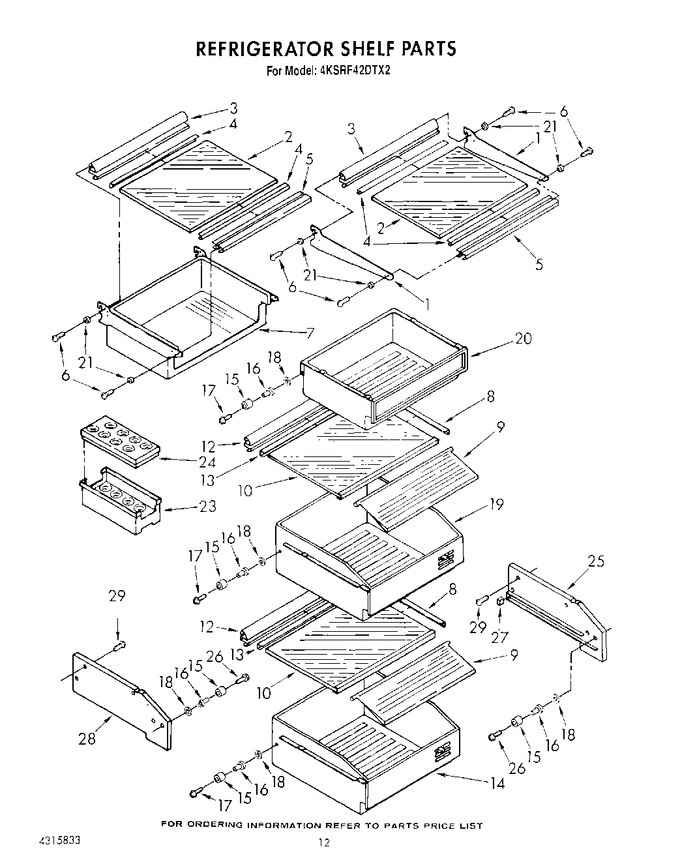

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1112244 | Side Arm, Cantilever Shelf |
|
- | |||||
| 2 | 1112156 | Glass, Shelf |
|
- | |||||
| 3 | 1112161 | Reflector, Shelf |
|
- | |||||
| 4 | 1112599 | Gasket, Glass (2) |
|
- | |||||
| 5 | 1112171 | Trim, Shelf Front |
|
- | |||||
| 6 | 489210 | Screw, 6-32 X 1/2 |
|
- | |||||
| 7 | 1124007 | Frame & Housing, Meat Pan |
|
- | |||||
| 8 | 1112324 | Retainer, Glass |
|
- | |||||
| 9 | WP1113894 | Lid, Crisper (Replaces: 1112246) |
|
$ 94.49 | |||||
| 10 | 1112251 | Glass, Crisper |
|
- | |||||
| 12 | 1112263 | Reflector, Glass |
|
- | |||||
| 13 | 1112634 | Gasket, Crisper |
|
- | |||||
| 14 | 1112221 | Pan, Crisper |
|
- | |||||
| 15 | 1112638 | Roller |
|
- | |||||
| 16 | 1112639 | Eyelet, Roller |
|
- | |||||
| 17 | WPW10272364 | Screw, 10-16 X 3/4 (Replaces: 489211) |
|
Immediately | $ 10.82 | ||||
| 17 | WP489261 | Screw (repair) (Replaces: 489261) |
|
$ 7.61 | |||||
| 18 | 488307 | Washer |
|
- | |||||
| 19 | 1113243 | Utility Pan |
|
- | |||||
| 20 | 1112196 | Meat Pan |
|
- | |||||
| 21 | 1113286 | Spacer, Shelf |
|
- | |||||
| 23 | 1107384 | Egg Container, Bottom |
|
- | |||||
| 24 | 1107388 | Egg Container, Top |
|
- | |||||
| 25 | 1112165 | Crisper Spacer, Right Side (2) |
|
- | |||||
| 26 | WP489261 | Screw, 10-16 X 5/8 (Replaces: 489212) |
|
$ 7.61 | |||||
| 26 | WP489261 | Screw (repair) (Replaces: 489261) |
|
$ 7.61 | |||||
| 27 | 1113169 | Stop, Roller |
|
$ 11.28 | |||||
| 28 | 1112141 | Crisper Spacer, Left Side (2) |
|
- | |||||
| 29 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 29 | WP681414 | Screw (repair) (Replaces: 488908) |
|
Immediately | $ 7.85 |
