SELECT A DIAGRAM

01 - Lid And Latch, Literature


02 - Control Panel


03 - Tub/sink


04 - Air-gap And Dispenser


05 - Pump And Motor


06 - Sump And Strainer


07 - Dishrack And Sprayarm


08 - Miscellaneous, Optional

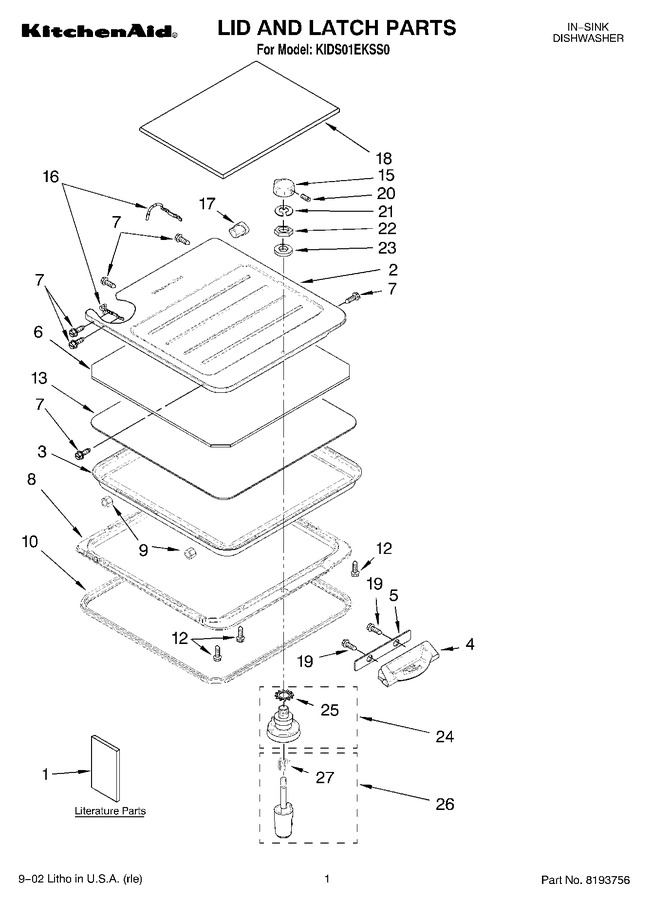

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8529408		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8529409		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT8529407		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8529449		Literature Partstech Sheet (english/french)		Appelez-nous	-
2	8529357		Lid, Outer		Appelez-nous	-
3	8529358		Lid, Inner		Appelez-nous	-
4	8536997		Cup, Detergent		Appelez-nous	-
5	8536998		Seal, Detergent Cup		Appelez-nous	-
6	8529459		Insulator, Sound Lid		Appelez-nous	-
7	WPW10119828		Screw   (Replaces: 355274)			Immediately	$ 7.55
8	8529340		Retainer, Gasket		Appelez-nous	-
9	3400629		Nut		Appelez-nous	-
10	8529381		Gasket, Lid		Appelez-nous	-
12	3400628		Screw		Appelez-nous	-
13	8529458		Mastic, Lid		Appelez-nous	-
15	8529380		Knob, Latch (also Order Item 20)		Appelez-nous	-
16	8529383		Pin, Hinge (left Hand)		Appelez-nous	-
16	8529384		Pin, Hinge (right Hand)		Appelez-nous	-
17	8319539		Bearing, Lid Hinge				$ 5.51
18	8529385		Board, Cutting		Appelez-nous	-
19	W11631670		Screw   (Replaces: 8281217)				$ 14.72
20	3400630		Screw, Set		Appelez-nous	-
21	3400940		E-ring		Appelez-nous	-
22	WP33001443		Nut, Hex   (Replaces: 3400522)				$ 8.76
23	3400939		Washer		Appelez-nous	-
24	8537007		Collar Assembly		Appelez-nous	-
25	3400941		Washer		Appelez-nous	-
26	8529395		Cam Assembly		Appelez-nous	-
27	8529390		Spring, Torsion		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
