SELECT A DIAGRAM

01 - Lid And Latch, Literature


02 - Control Panel


03 - Tub/sink


04 - Air-gap And Dispenser


05 - Pump And Motor


06 - Sump And Strainer


07 - Dishrack And Sprayarm


08 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

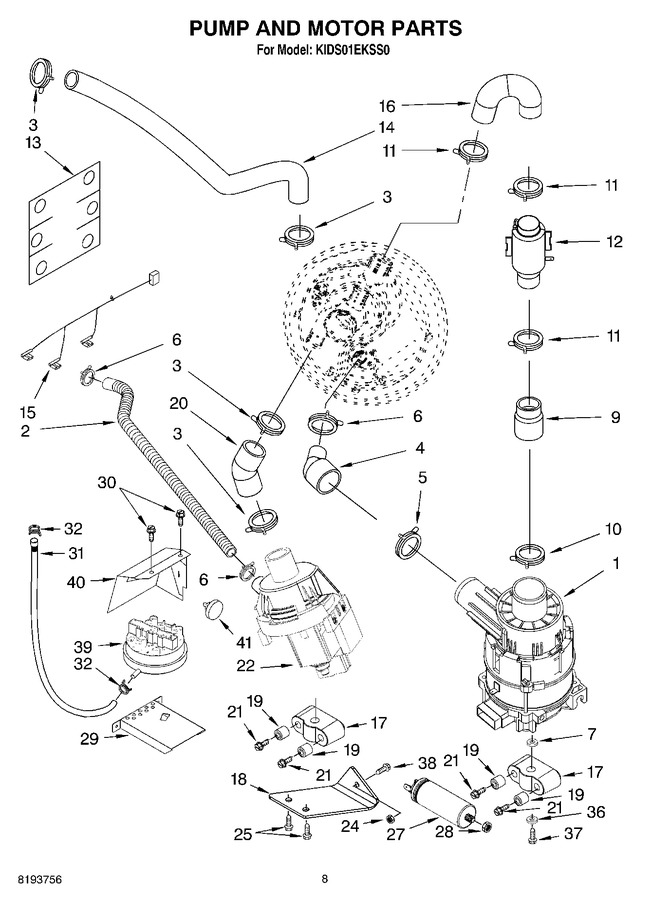

1	8529370		Pump & Motor (also Order Item 7)		Appelez-nous	-
2	8529474		Hose, Drain W/check Valve				$ 56.21
3	WP8269146		Clamp   (Replaces: 8269146)				$ 8.12
4	8529327		Hose, Sump Wash Pump		Appelez-nous	-
5	8281275		Clamp, Hose		Appelez-nous	-
6	371499		Clamp, Hose				$ 12.95
7	3400943		Grommet, Bushing		Appelez-nous	-
9	8529329		Hose, Heater Wash Pump		Appelez-nous	-
10	W11622908		Clamp   (Replaces: 8281276)				$ 22.22
11	WP285655		Clamp   (Replaces: 370447)			Immediately	$ 8.39
12	8529372		Heater		Appelez-nous	-
13	8529508		Shield, Heater		Appelez-nous	-
14	8529512		Hose, Drain Air Gap		Appelez-nous	-
15	8318161		Wire Harness Heater		Appelez-nous	-
16	8529326		Hose Sump/heater		Appelez-nous	-
17	8529324		Grommet, Motor		Appelez-nous	-
18	8529431		Bracket, Drain Pump		Appelez-nous	-
19	3400942		Sleeve, Grommet		Appelez-nous	-
20	8529328		Hose, Sump/drain Motor		Appelez-nous	-
21	3400226		Screw		Appelez-nous	-
22	8529374		Pump, Drain		Appelez-nous	-
24	WP3400029		Nut   (Replaces: 3400029)			Immediately	$ 7.76
25	3428430		Screw		Appelez-nous	-
27	8529371		Capacitor		Appelez-nous	-
28	3400921		Nut		Appelez-nous	-
29	8529433		Bracket, Pressure Switch		Appelez-nous	-
30	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
31	8529479		Hose, Pressure Switch		Appelez-nous	-
32	3380943		Clamp, Hose		Appelez-nous	-
36	487944		Washer		Appelez-nous	-
37	8533830		Screw		Appelez-nous	-
38	8533831		Screw		Appelez-nous	-
39	8529373		Switch, Pressure		Appelez-nous	-
40	8537005		Shield, Assembly		Appelez-nous	-
41	8283353		Spacer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
