Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8529413 Gasket, Sump Appelez-nous -
2 8529334 Sump Appelez-nous -
3 8529435 Ring, Sump Appelez-nous -
4 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

5 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

6 8537006 Dome, Pressure Appelez-nous -
7 8529332 Retainer, Feed Tube Appelez-nous -
8 8529331 Tube, Feed Appelez-nous -
9 8529330 Poppet, Valve Appelez-nous -
10 8529414 Sieve, Stainless Appelez-nous -
11 8529415 Microfilter Appelez-nous -
12 8529367 Filter, Drain Stem Assembly Appelez-nous -
13 3400951 Grommet Appelez-nous -
14 8269208 Thermistor Special Order $ 92.20


    View Diagram in Separate Window     Print Icon   Print Part List

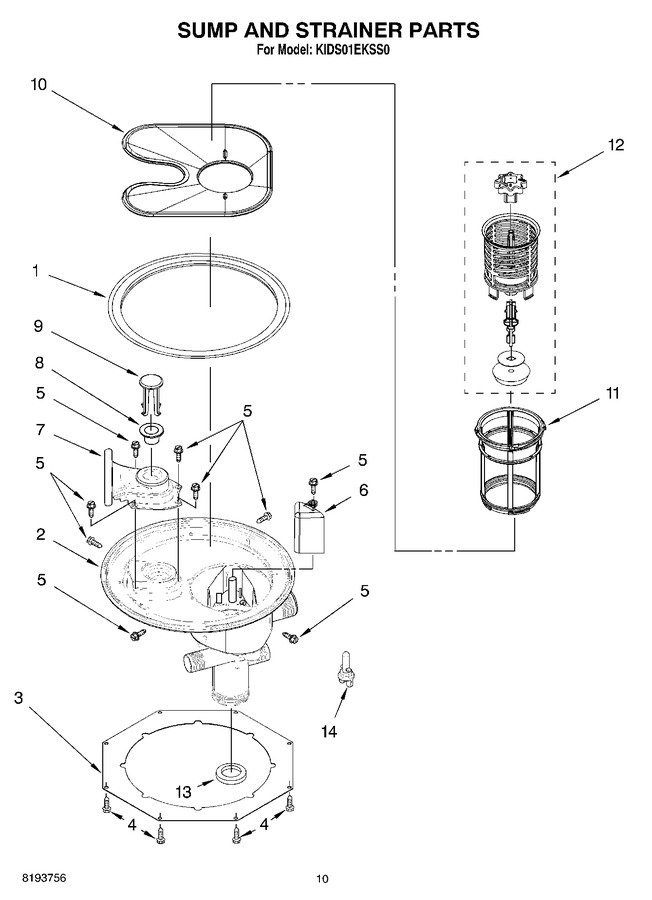

Diagram for KIDS01EKSS0
