SELECT A DIAGRAM

01 - Lid And Latch, Literature


02 - Control Panel


03 - Tub/sink


04 - Air-gap And Dispenser


05 - Pump And Motor


06 - Sump And Strainer


07 - Dishrack And Sprayarm


08 - Miscellaneous, Optional

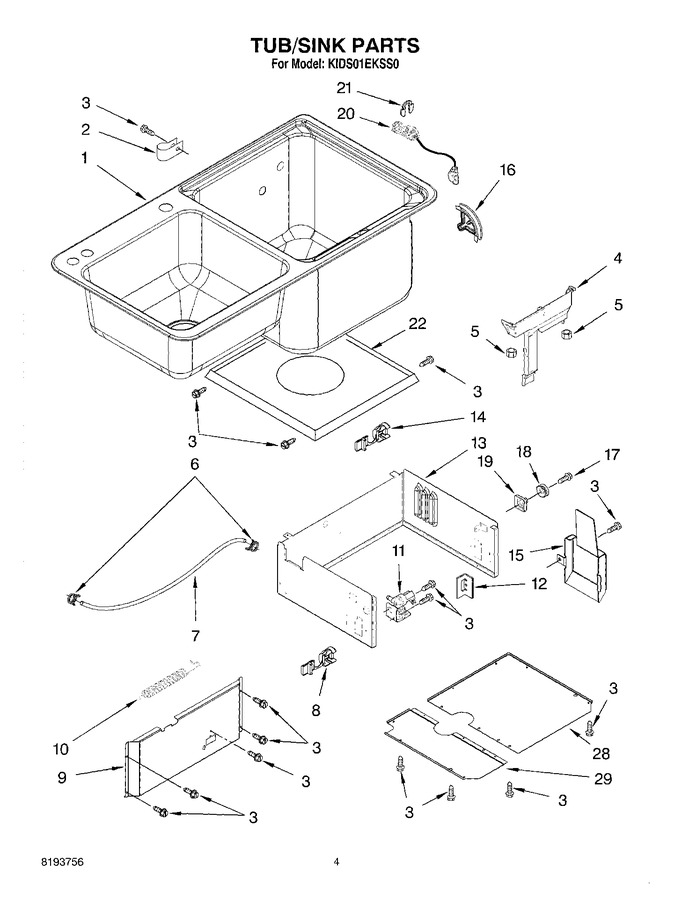

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8529348		Tub/sink Assembly		Appelez-nous	-
2	8537014		Clamp, Cable		Appelez-nous	-
3	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
4	8529446		Cover, Enclosure		Appelez-nous	-
5	W10080180		Nut   (Replaces: 3400902)				$ 14.15
6	WP596669		Clamp, Small   (Replaces: 301958)			Immediately	$ 8.82
7	8537010		Hose, Water Inlet		Appelez-nous	-
8	8536977		Strain Relief		Appelez-nous	-
9	8529439		Cover, Access		Appelez-nous	-
10	8529447		Spring, Lid		Appelez-nous	-
11	8529387		Inlet, Water		Appelez-nous	-
12	8536979		Plate, Lid Counter Balance		Appelez-nous	-
13	8529438		Wrapper, U-shape		Appelez-nous	-
14	3400950		Strain Relief		Appelez-nous	-
15	8536980		Cover, Lid Counter Balance		Appelez-nous	-
16	8529341		Guide, Rope Upper		Appelez-nous	-
17	WP3400074		Screw   (Replaces: 3400074)				$ 7.55
18	8194001		Wheel   (Replaces: 8524474)			Immediately	$ 43.06
19	8536978		Mount, Wheel		Appelez-nous	-
20	8529382		Link, Lid Balance (also Order Item 21)		Appelez-nous	-
21	3400945		C-ring		Appelez-nous	-
22	8537021		Base Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
