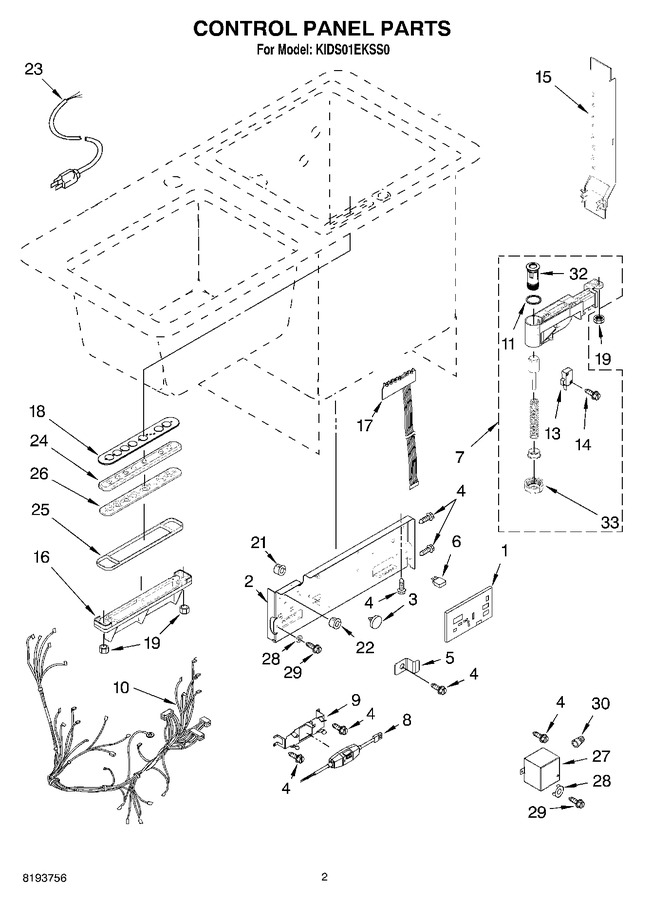

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8528829		Control, Electronic (also Order Item 6)		Appelez-nous	-
2	8529436		Brace, Cross		Appelez-nous	-
3	8283353		Spacer, Cabinet		Appelez-nous	-
4	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.86
5	8529432		Bracket, Control		Appelez-nous	-
6	675813		Fuse, Thermal Electronic   (Replaces: 3376359)			Immediately	$ 48.05
7	8537020		Latch Assembly		Appelez-nous	-
8	8536987		Ground Fault		Appelez-nous	-
9	8529517		Bracket, Ground Fault		Appelez-nous	-
10	8318158		Harness, Main		Appelez-nous	-
11	8529518		Gasket		Appelez-nous	-
13	3369325		Switch, Micro		Appelez-nous	-
14	3400409		Screw		Appelez-nous	-
15	8529445		Protector, Harness		Appelez-nous	-
16	8529504		Bracket, User Interface		Appelez-nous	-
17	8529323		Board, Interface		Appelez-nous	-
18	8529509		Insert		Appelez-nous	-
19	W10080180		Nut   (Replaces: 3400902)				$ 13.48
21	8536976		Bushing		Appelez-nous	-
22	8529522		Bushing		Appelez-nous	-
23	4317824		Cord, Power   (Replaces: 3370315)			Immediately	$ 19.77
24	8529505		Spacer, User Interface		Appelez-nous	-
25	8529506		Gasket, User Interface		Appelez-nous	-
26	8529511		Plate, Backing		Appelez-nous	-
27	8529437		Cover, Terminal		Appelez-nous	-
28	WP3378128		Washer, Pronged   (Replaces: 3378128)				$ 9.03
29	WP3400014		Screw   (Replaces: 3400014)				$ 7.75
30	8529478		Nut, Wire		Appelez-nous	-
32	8529393		Housing, Plunger Latch		Appelez-nous	-
33	8529403		Nut, Latch		Appelez-nous	-
