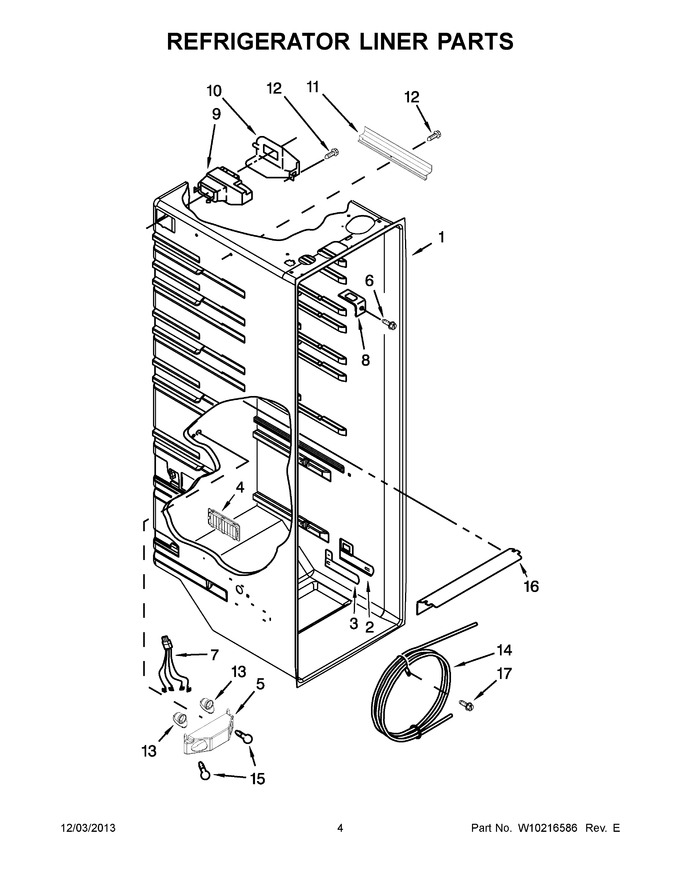

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10175967		Escutcheon, Meat Pan Control				$ 77.20
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Lights				$ 62.54
6	WP488488		Screw   (Replaces: 489290)				$ 7.68
7	2311637		Assembly, Crisper Light Wire				$ 140.23
8	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
9	WPW10151375		Assembly, Air Diffuser   (Replaces: 2209754)				$ 117.95
10	2152019		Cover, Air Diffuser				$ 86.03
11	W10252495		Cover, Wiring		Appelez-nous	-
12	W10759522		Screw   (Replaces: 486298)				$ 7.75
13	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
14	WPW10276792		Tubing, Water Reservoir   (Replaces: W10276792)				$ 137.57
15	W11679940		Bulb, Light   (Replaces: W10311505)			Immediately	$ 11.30
16	2209769		Cover, Light Lens		Appelez-nous	-
17	488280		Screw		Appelez-nous	-
