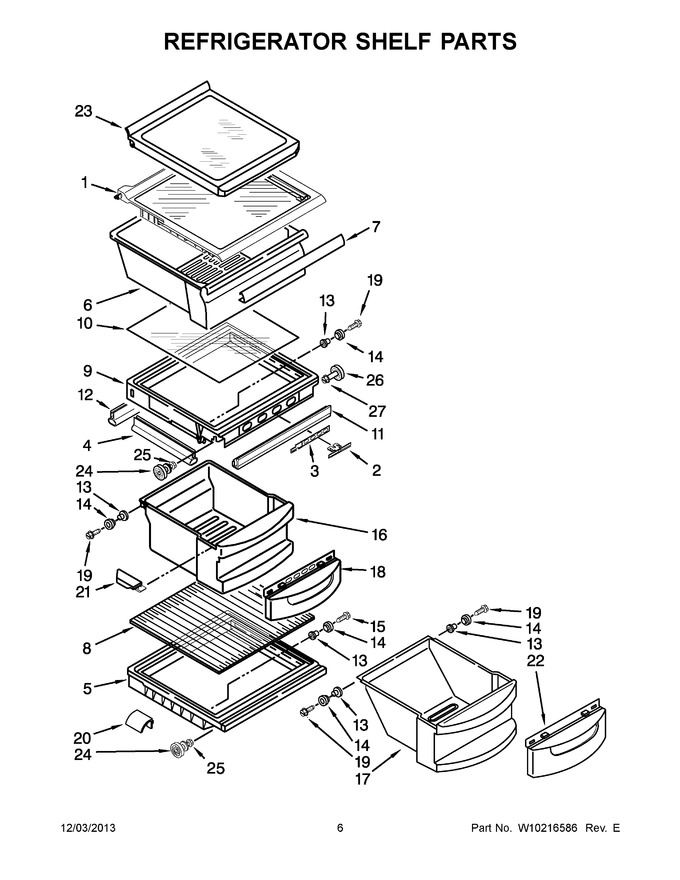

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10276341 | Shelf, Snack Pan (Replaces: W10276341) |
|
$ 217.50 | |||||
| 2 | 2319720 | Button Humidity Control |
|
- | |||||
| 3 | 2174252 | Slide, Humidity Control |
|
$ 15.17 | |||||
| 4 | 2174273 | Gasket |
|
$ 41.53 | |||||
| 5 | WP2223357 | Cover, Meat Pan (Replaces: 2223357) |
|
$ 259.48 | |||||
| 6 | WP2309517 | Pan, Snack (Replaces: 2309518) |
|
$ 126.72 | |||||
| 7 | WP2179243 | Trim, Snack Pan (Replaces: 2309519) |
|
$ 104.43 | |||||
| 8 | W10160481 | Cover, Glass |
|
$ 87.92 | |||||
| 9 | W10160317 | Cover, Crisper |
|
$ 98.56 | |||||
| 10 | W10160480 | Cover, Glass |
|
- | |||||
| 11 | WP1125528 | Gasket, Pan Cover (Replaces: 2223361) |
|
$ 153.99 | |||||
| 12 | 2223362 | Gasket, Crisper Cover |
|
- | |||||
| 13 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 14 | 2188212 | Roller |
|
- | |||||
| 15 | WPW10272364 | Screw (stainless) (Replaces: 489211) |
|
Immediately | $ 10.82 | ||||
| 16 | W10142714 | Pan, Crisper |
|
$ 101.71 | |||||
| 17 | W10149981 | Pan, Meat |
|
$ 71.18 | |||||
| 18 | 2174076 | Window, Crisper Pan |
|
$ 80.62 | |||||
| 19 | WP489261 | Screw (stainless) (Replaces: 489261) |
|
$ 7.61 | |||||
| 20 | 2176095 | Deflector |
|
$ 87.30 | |||||
| 21 | 2223286 | Cap, Crisper Pan (right Hand) |
|
$ 20.18 | |||||
| 21 | 2223285 | Cap, Crisper Pan (left Hand) |
|
$ 21.28 | |||||
| 22 | WP2174362 | Window, Meat Pan (Replaces: 2174362) |
|
$ 171.20 | |||||
| 23 | 2327180 | Assembly, Shelf And Roller |
|
- | |||||
| 24 | W11223328 | Assembly, Shelf Stud (Replaces: W10173126) |
|
Immediately | $ 14.07 | ||||
| 25 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.05 | |||||
| 26 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 27 | W10191952 | Screw |
|
$ 5.65 |
