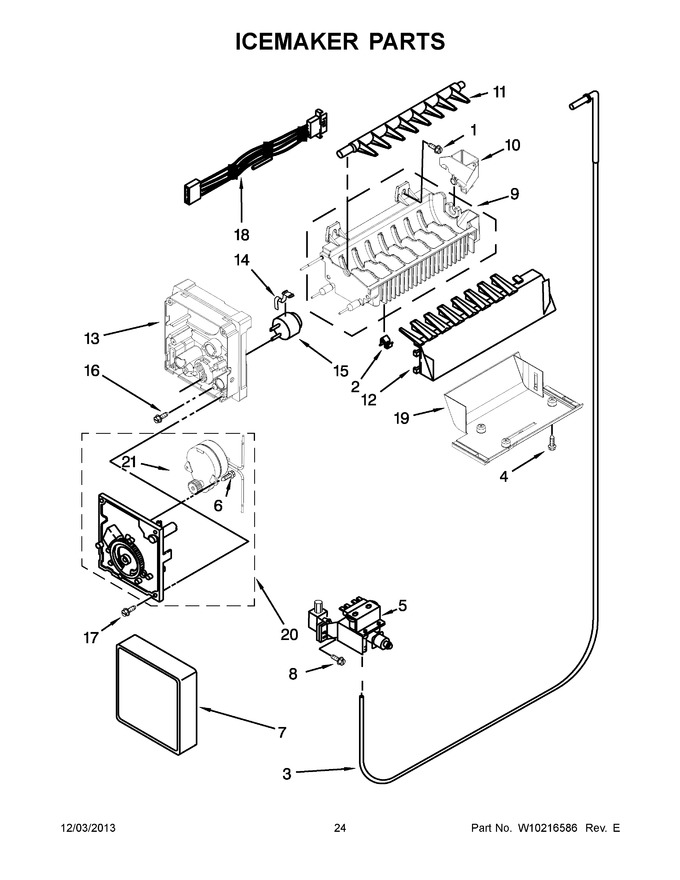

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 3 | WPW10140630 | Fitting, Water (Replaces: W10140630) |
|
$ 135.78 | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 5 | W10822681 | Assembly, Filter Valve (Replaces: 2188709) |
|
Immediately | $ 162.93 | ||||
| 6 | 489136 | Screw |
|
$ 10.29 | |||||
| 7 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 8 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 9 | WPW10122550 | Assembly, Mold And Heater (Replaces: W10122550) |
|
$ 207.28 | |||||
| 10 | WPW10272168 | Cup-water Fill (Replaces: W10272168) |
|
$ 72.84 | |||||
| 11 | 626753 | Ejector |
|
$ 13.94 | |||||
| 12 | WPW10272164 | Stripper, Ice (Replaces: W10272164) |
|
$ 100.98 | |||||
| 13 | WP2195914 | Support, Housing (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 18 | WPW10309401 | Assembly, Icemaker Wire (Replaces: W10309401) |
|
$ 126.27 | |||||
| 19 | W10131253 | Bracket, Icemaker Mounting |
|
- | |||||
| 20 | 8201515 | Assembly, Module And Motor (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | N/P | Motor (not Serviced, Order No.20) |
|
- | |||||
| 100 | WPW10190961 | Assembly, Icemaker (complete) (Replaces: W10190961) |
|
Immediately | $ 188.94 |
