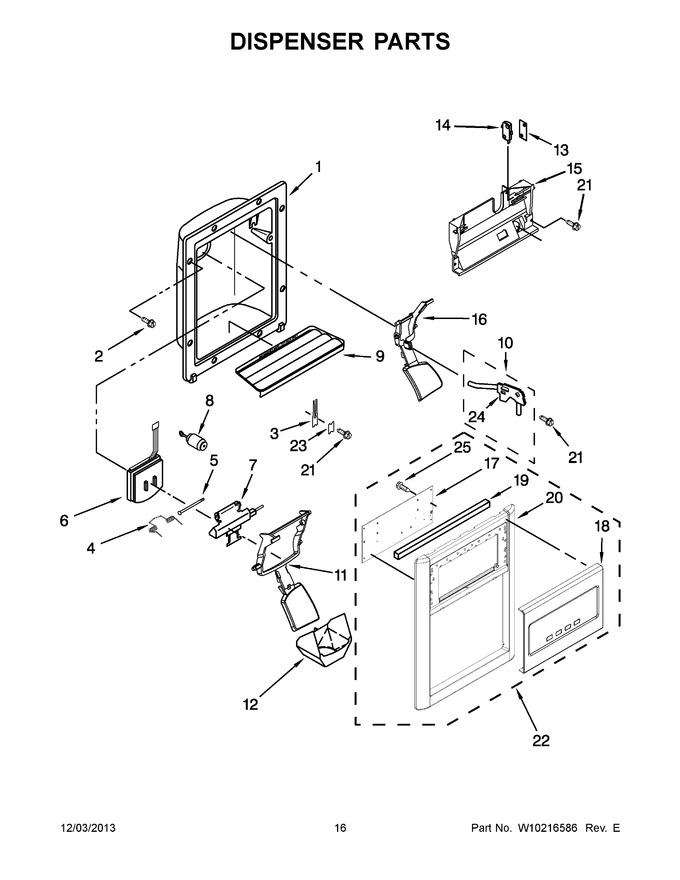

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
3	WP2194719		Spring, Lever   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.69
7	2304355		Support, Ice Door		Appelez-nous	-
8	W10467899		Mechanism Delay		Appelez-nous	-
9	WP2206671W		Grille, Overflow (white)   (Replaces: 2206671W)				$ 68.73
9	2206671T		Grille, Overflow (biscuit)				$ 27.69
9	WP2206671B		Grille, Overflow (black)   (Replaces: 2206671B)				$ 69.05
9	W10171992		Grille, Overflow (nickel)				$ 88.69
10	8201537		Assembly, Water Fitting (includes Water Tube)   (Replaces: 2304317)				$ 134.13
11	2180259		Lever, Ice Dispenser (white)				$ 42.12
11	2180261AP		Lever, Ice Dispenser (grey)		Appelez-nous	-
11	2180261		Lever, Ice Dispenser (black)		Appelez-nous	-
11	2180260		Lever, Ice Dispenser (biscuit)		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	625834		Spacer, Switch Harness				$ 7.99
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 27.34
15	W10728484		Bracket, Control   (Replaces: W10206221)				$ 57.32
16	2180269		Lever, Water Dispenser (biscuit)		Appelez-nous	-
16	WPW10152858		Lever, Water Dispenser (white)   (Replaces: 2180268)				$ 104.60
16	2180270AP		Lever, Water Dispenser (grey)				$ 47.60
16	WPW10152859		Lever, Water Dispenser (black)   (Replaces: 2180270)			Immediately	$ 97.92
17	2321704		Control, Electronic				$ 224.49
18	N/P		Fascia, Dispenser (not Available ? Order Item No.22)		Appelez-nous	-
19	2305571		Gasket, Front Cover				$ 26.13
20	N/P		Bezel, Dispenser (not Available ? Order Item No.22)		Appelez-nous	-
21	WP3400906		Screw   (Replaces: 489000)				$ 7.84
22	W10139723		Assembly, Front Cover (includes Items 17, 18, 19, 20, & 25) (black)				$ 448.23
22	W10139724		Assembly, Front Cover (includes Items 17, 18, 19, 20, & 25) (biscuit)		Appelez-nous	-
22	W10159780		Assembly, Front Cover (includes Items 17, 18, 19, 20, & 25) (nickel)		Appelez-nous	-
22	W10136782		Assembly, Front Cover (includes Items 17, 18, 19, 20, & 25) (white)		Appelez-nous	-
23	WP2195051		Relief, Strain   (Replaces: 2195051)				$ 11.67
24	WP2304673		Bracket, Water Tube   (Replaces: 2304673)				$ 15.60
25	2006254		Screw   (Replaces: 489214)				$ 13.13
