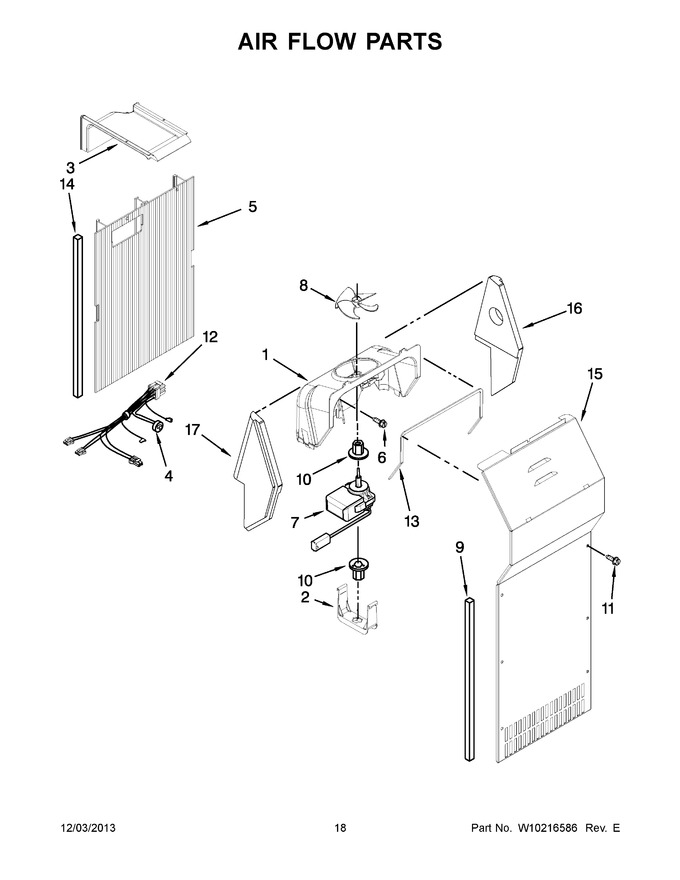

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Scroll, Fan (Replaces: 2182119) |
|
Immediately | $ 323.27 | ||||
| 2 | W11700295 | Retainer, Fan Motor (Replaces: W10188846) |
|
$ 22.19 | |||||
| 3 | 2313359 | Duct, Upper (Replaces: W10272514) |
|
$ 104.97 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: W10225581) |
|
Immediately | $ 50.77 | ||||
| 5 | 2312009 | Duct, Freezer Air |
|
$ 92.05 | |||||
| 6 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 7 | W11780227 | Motor, Fan (Replaces: W10236142) |
|
Immediately | $ 142.00 | ||||
| 8 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | WP2304241 | Gasket (Replaces: 2304241) |
|
Immediately | $ 82.80 | ||||
| 10 | WP2176759 | Grommet, Motor (Replaces: 2176759) |
|
$ 7.77 | |||||
| 11 | 4389654 | Screw (Replaces: 8281159) |
|
$ 13.89 | |||||
| 12 | W10277480 | Harness, Element |
|
$ 147.79 | |||||
| 13 | WP2155789 | Gasket, Scroll Assembly (Replaces: 2155788) |
|
$ 7.79 | |||||
| 14 | 4388500 | Gasket, Air Duct (Replaces: 2203875) |
|
$ 90.39 | |||||
| 15 | 2212347 | Cover, Evaporator |
|
- | |||||
| 16 | 4388358 | Support, Fan Scroll (right Hand) (Replaces: 2203595) |
|
$ 31.16 | |||||
| 17 | 4388358 | Support, Fan Scroll (left Hand) (Replaces: 2203596) |
|
$ 31.16 |
