SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Shelf Parts


05 - Freezer Liner Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Icemaker Parts


14 - Optional Parts (not Included)

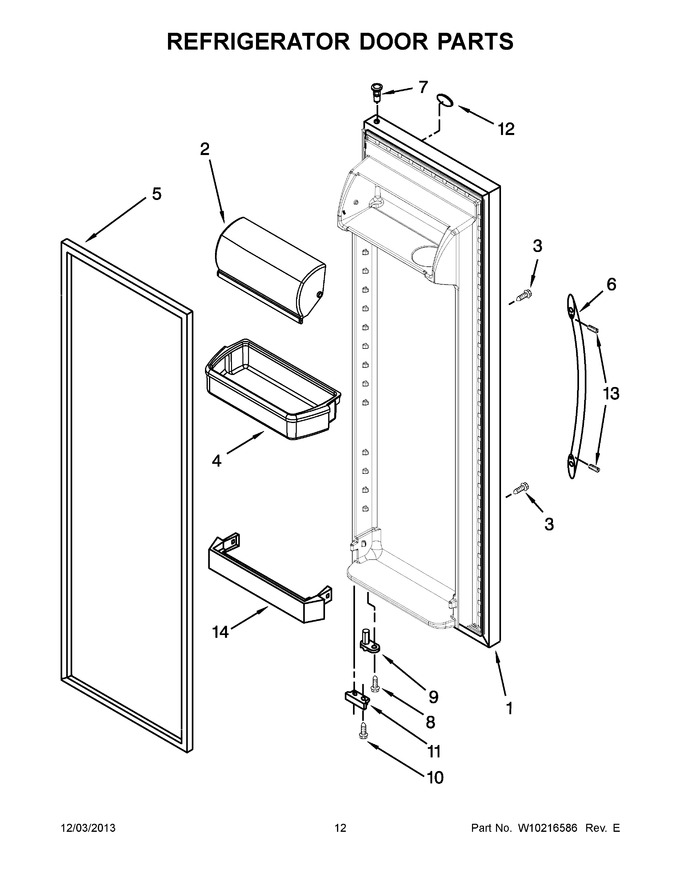

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2325248T		Door, Refrigerator (includes Item No.5) (biscuit)		Appelez-nous	-
1	L2325248B		Door, Refrigerator (includes Item No.5) (black)   (Replaces: 2325248B)				$ 1,155.60
1	2323861S		Door, Refrigerator (includes Item No.5) (stainless)		Appelez-nous	-
1	W10191409		Door, Refrigerator (includes Item No.5) (monochromatic)		Appelez-nous	-
1	2325248W		Door, Refrigerator (includes Item No.5) (white)		Appelez-nous	-
2	2301486		Assembly, Compartment Door		Appelez-nous	-
3	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.51
4	WPW10321304		Bin, Door   (Replaces: W10321304)			Immediately	$ 44.73
5	W10136732		Gasket, Door (grey)   (Replaces: 2327161)			Immediately	$ 361.20
5	2159081		Gasket, Door (black)   (Replaces: 2309653)				$ 335.58
5	2159073		Gasket, Door (beige)   (Replaces: 2309600)				$ 333.19
6	2319727W		Handle (includes Item No.3) (white)				$ 106.80
6	2319727S		Handle (includes Item No.3) (stainless)				$ 133.96
6	2319727B		Handle (includes Item No.3) (black)				$ 109.87
6	2319727T		Handle (includes Item No.3) (biscuit)		Appelez-nous	-
7	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WP2182179		Thimble, Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	W10219811		Bracket, Door Stop (zinc)				$ 25.43
11	W10219812		Bracket, Door Stop (black)				$ 24.48
12	WPW10243391		Nameplate (stainless)   (Replaces: W10243391)				$ 58.31
12	W10243394		Nameplate (biscuit/bisque)		Appelez-nous	-
12	WPW10243393		Nameplate (white)   (Replaces: W10243393)				$ 69.98
12	WPW10243392		Nameplate (black)   (Replaces: W10243392)				$ 73.70
13	WPW10010150		Set Screw (black)   (Replaces: W10010150)				$ 8.57
13	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 15.79
14	WP2156022		Trivet   (Replaces: 2156022)			Immediately	$ 72.80
