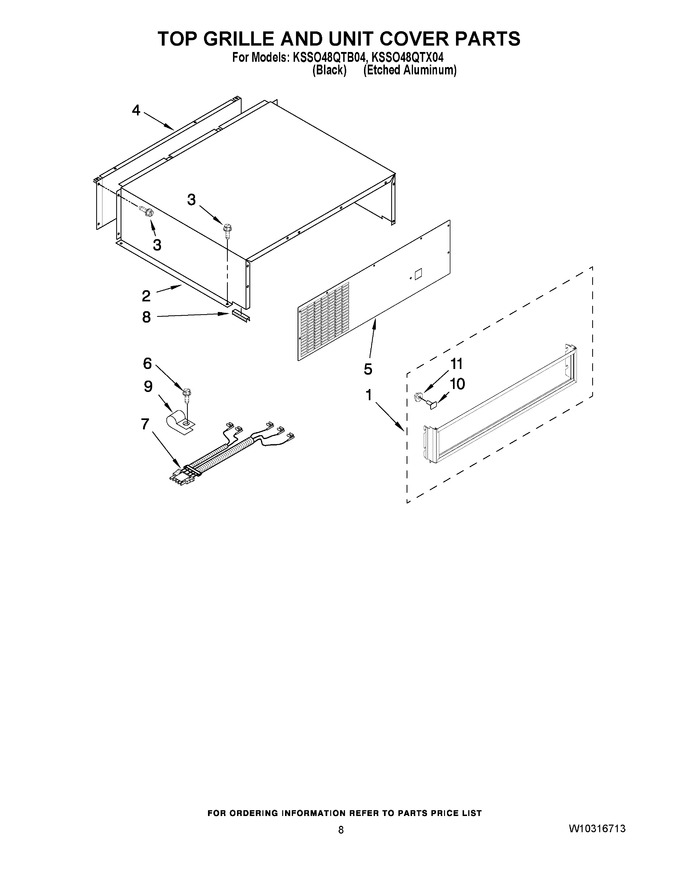

06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313979S		Panel, Decorative Assembly (stainless Steel)				$ 271.81
1	2313979B		Panel, Decorative Assembly (black)				$ 269.13
2	W10161693		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel				$ 327.22
5	W10185625		Cover, Unit Front				$ 262.53
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	W10167456		Wire Assembly Rc/fc Light Switch		Appelez-nous	-
8	2215910		Grommet, Flex				$ 94.32
9	489348		Clamp		Appelez-nous	-
10	WP488130		Nut   (Replaces: 1161548)				$ 7.32
11	2003347		Tee Bolt				$ 14.99
