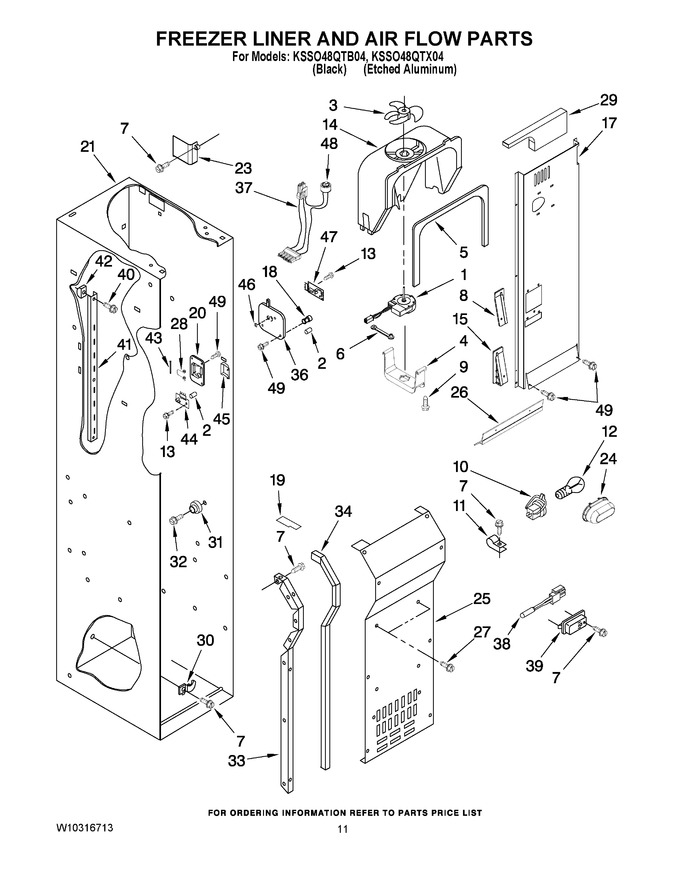

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2259385 | Fan Motor |
|
$ 84.74 | |||||
| 2 | 2198665 | Tube, P.c. Board |
|
$ 21.52 | |||||
| 3 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 4 | 8201663 | Retainer, Fan Motor (Replaces: 2223733) |
|
$ 159.27 | |||||
| 5 | WP2302817 | Gasket, Cover (Replaces: 2302817) |
|
$ 101.04 | |||||
| 6 | W11669856 | Grommet (Replaces: 2223986) |
|
Immediately | $ 15.93 | ||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 8 | 2259464 | Wedge, Air Duct |
|
$ 95.38 | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 11.40 | |||||
| 10 | WPW10191429 | Socket, Light (2) (Replaces: 2223857) |
|
$ 8.80 | |||||
| 11 | 488937 | Clamp, Nylon |
|
- | |||||
| 12 | WPA3073101 | Light Bulb (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 13 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 117.57 | ||||
| 15 | 2259465 | Wedge, Air Duct |
|
- | |||||
| 17 | 2307775 | Air Duct |
|
- | |||||
| 18 | WP2198643 | Lens (Replaces: 2198643) |
|
$ 8.59 | |||||
| 19 | 2209066 | Block, Fan Scroll (left) |
|
- | |||||
| 19 | 2209482 | Block, Fan Scroll (right) |
|
- | |||||
| 20 | WP2215650 | Cover, Emitter (Replaces: 2215650) |
|
$ 212.98 | |||||
| 21 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 23 | 2259025 | Cover, Air Outlet |
|
$ 92.36 | |||||
| 24 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 25 | W10158005 | Cover, Evaporator |
|
- | |||||
| 26 | 2302851 | Support, Air Duct |
|
- | |||||
| 27 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 28 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 91.43 | |||||
| 29 | 2309284 | Deflector, Air Duct |
|
- | |||||
| 30 | 1112260 | Support,evaporator |
|
- | |||||
| 31 | WP2196483 | Shelf, Stud (20) (Replaces: 2196205) |
|
$ 10.87 | |||||
| 32 | W10191952 | Screw |
|
$ 5.65 | |||||
| 33 | 2221107 | Evaporator, Cover Rail (left Side) |
|
- | |||||
| 33 | 2259355 | Evaporator, Cover Rail (right Side) |
|
$ 126.54 | |||||
| 34 | 2220904 | Gasket (2) Evaporator Cover |
|
$ 23.55 | |||||
| 36 | 2259493 | Cover, Receiver |
|
$ 94.63 | |||||
| 37 | W10139189 | Harness, Evap Fan (includes No.48) |
|
$ 168.77 | |||||
| 38 | WP2306010 | Thermistor (Replaces: 2306010) |
|
Immediately | $ 103.58 | ||||
| 39 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 11.38 | |||||
| 40 | 2006475 | Screw, |
|
- | |||||
| 41 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 81.02 | |||||
| 42 | 2259445 | Support, Screw |
|
- | |||||
| 43 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 18.65 | |||||
| 44 | W11629974 | P.c. Board Emitter (Replaces: W10193840) |
|
Immediately | $ 421.12 | ||||
| 45 | WP2198633 | Flipper (Replaces: 2198633) |
|
Immediately | $ 50.68 | ||||
| 46 | 2255563 | Slide, Icemaker Shut Off |
|
$ 83.73 | |||||
| 47 | W11629974 | P.c. Board Receiver (Replaces: W10290817) |
|
Immediately | $ 421.12 | ||||
| 48 | WPW10160570 | Defrost, Bi-metal (Replaces: W10160570) |
|
Immediately | $ 138.98 | ||||
| 49 | WPW10142283 | Screw (Replaces: 8281185) |
|
$ 10.33 |
