Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10193491 Refrigerator Door Panel (includes Item No.9) Appelez-nous -
3 2252295B Hinge Assy, Top (black) Appelez-nous -
3 2252295 Hinge Assy, Top (chrome) Special Order $ 51.53

4 W11673500 Spacer-door, Top & Bottom   (Replaces: 2316804) In-Stock Immediately $ 108.07

5 W11474472 Screw   (Replaces: 489282) In-Stock Immediately $ 8.02

6 2252293B Hinge Assy, Btm (black) Appelez-nous -
6 2252293 Hinge Assy, Btm (chrome) Appelez-nous -
7 W11348580 Rail, Lid   (Replaces: 2222797) In-Stock Immediately $ 162.13

8 W11348580 Gaasket, Utility Bin   (Replaces: 2222983) In-Stock Immediately $ 162.13

9 WP2266903 Door Gasket, Magnetic   (Replaces: 2222812) In-Stock Immediately $ 323.83

10 2207457 Trim, Corner (chrome) Special Order $ 54.40

10 2006273 Trim, Corner (black) Appelez-nous -
11 2309497B Handle, Door (black) Appelez-nous -
11 2309497S Handle, Door (stainless Steel) Special Order $ 307.64

12 2259448B Cover, Trim (hinge Side) (black) Appelez-nous -
12 2259448S Cover, Trim (hinge Side) (stainless Steel) Special Order $ 170.95

13 2314003B Cover, Trim (handle Side) (black) Appelez-nous -
13 2314003S Cover, Trim (handle Side) (stainless Steel) Special Order $ 166.31

15 W10851443 Screw, 8-15 X .500 (black)   (Replaces: 8281252) In-Stock Immediately $ 7.69

15 WP8281250 Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250) Special Order $ 10.88

16 2309487B Trim-door, Top (black) Appelez-nous -
16 2309487S Trim-door, Top (stainless Steel) Special Order $ 225.03

18 2309498B Trim-door, (hinge Side) (black) Appelez-nous -
18 2309498S Trim-door, (hinge Side) (stainless Steel) Special Order $ 308.93

19 2309493S Trim-door, Btm (stainless Steel) Appelez-nous -
19 2309493B Trim-door, Btm (black) Appelez-nous -
20 WPW10323172 End Cap (right Side)   (Replaces: 2222919) Special Order $ 8.19

20 WPW10323173 End Cap (left Side)   (Replaces: 2222920) Special Order $ 8.19

21 W11348580 Bin, Utility Center   (Replaces: 2222923) In-Stock Immediately $ 162.13

22 W11348580 Door, Utility Bin   (Replaces: 2257617) In-Stock Immediately $ 162.13

23 W11752086 Bin, Door (3)   (Replaces: 2222774) Special Order $ 64.94

24 W10323748 Bin, Door   (Replaces: 2222771) Special Order $ 115.98


    View Diagram in Separate Window     Print Icon   Print Part List

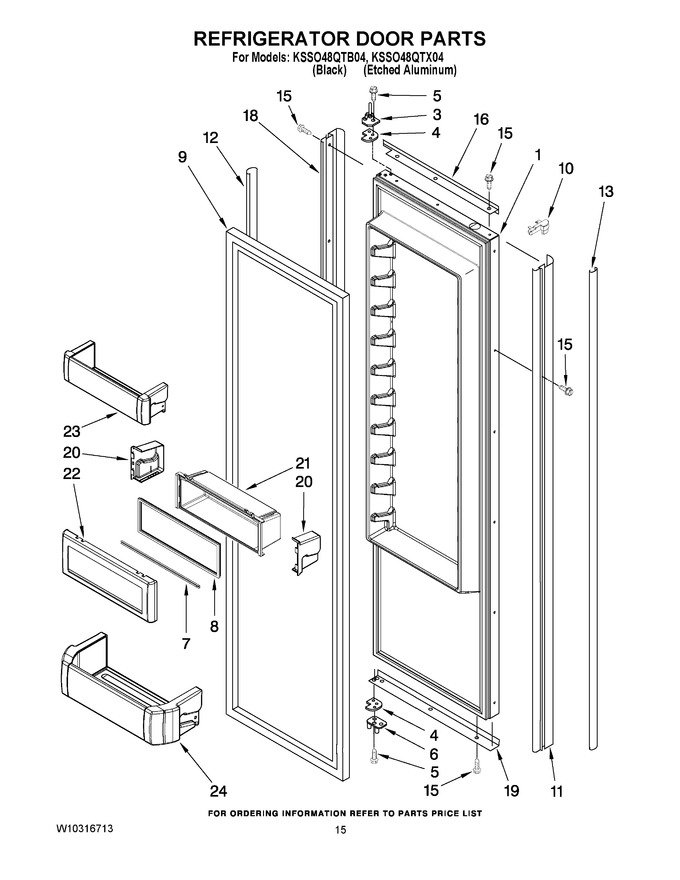

Diagram for KSSO48QTX04
