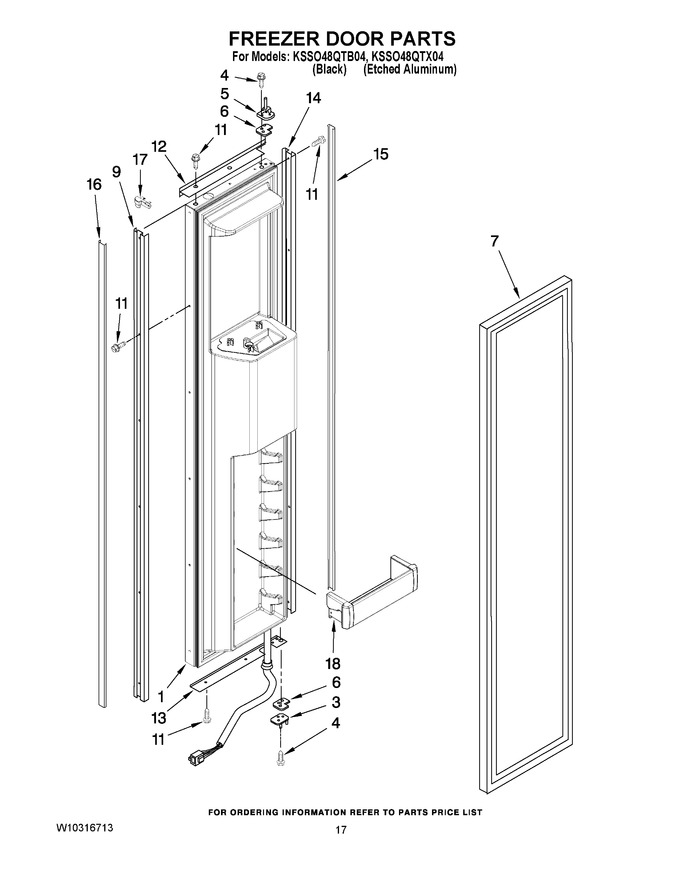

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292433 | Freezer Door (includes No.7) (universal Silver) |
|
- | |||||
| 1 | W10292444 | Freezer Door (includes No.7) (black) |
|
- | |||||
| 3 | 2252294 | Hinge, Bottom (chrome) |
|
- | |||||
| 3 | 2252294B | Hinge, Bottom (black) |
|
- | |||||
| 4 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 5 | 2252295B | Hinge, Top (black) |
|
- | |||||
| 5 | 2252295 | Hinge, Top (chrome) |
|
$ 51.53 | |||||
| 6 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 108.07 | ||||
| 7 | WP2266901 | Door Gasket, Magnetic (Replaces: 2222810) |
|
$ 369.84 | |||||
| 9 | 2309497B | Trim-door, (handle Side) (black) |
|
- | |||||
| 9 | 2309497S | Trim-door, (handle Side) (stainless Steel) |
|
$ 323.02 | |||||
| 11 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 8.13 | ||||
| 11 | WP8281250 | Screw Stainless Steel (Replaces: 8281250) |
|
$ 11.42 | |||||
| 12 | 2309490B | Trim-door, Top (black) |
|
- | |||||
| 12 | 2309490S | Trim-door, Top (stainless Steel) |
|
$ 248.89 | |||||
| 13 | 2309496B | Trim-door, Btm (black) |
|
- | |||||
| 13 | 2309496S | Trim-door, Btm (stainless Steel) |
|
$ 245.49 | |||||
| 14 | 2309498S | Trim-door, (hinge Side) (stainless Steel) |
|
$ 324.38 | |||||
| 14 | 2309498B | Trim-door, (hinge Side) (black) |
|
- | |||||
| 15 | 2259448S | Cover, Trim (hinge Side) (stainless Steel) |
|
$ 179.50 | |||||
| 15 | 2259448B | Cover, Trim (hinge Side) (black) |
|
- | |||||
| 16 | 2314003B | Cover, Trim (handle Side) (black) |
|
- | |||||
| 16 | 2314003S | Cover, Trim (handle Side) (stainless Steel) |
|
$ 174.63 | |||||
| 17 | 2006273 | Trim, Corner (black) |
|
- | |||||
| 17 | 2207457 | Trim, Corner (chrome) |
|
$ 57.12 | |||||
| 18 | W11590561 | Bin, Door (3) (Replaces: 2222777) |
|
$ 94.23 |
