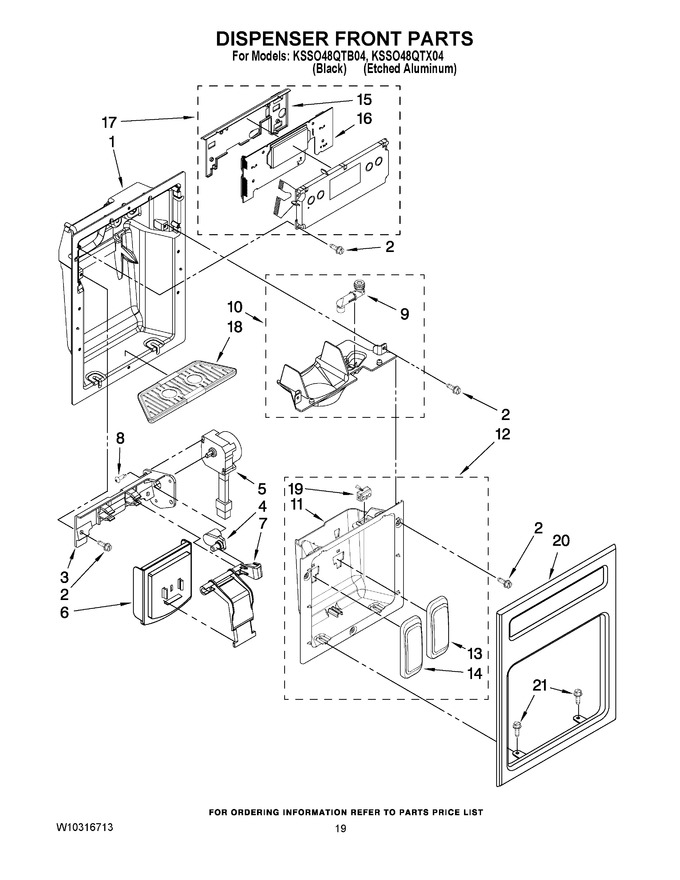

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11624204 | Screw (3) (Replaces: 486194) |
|
$ 14.02 | |||||
| 3 | WPW10546285 | Bracket, Motor (Replaces: W10132946) |
|
Immediately | $ 104.97 | ||||
| 4 | WP2305242 | Connector, Door Bracket (Replaces: 2305242) |
|
Immediately | $ 96.97 | ||||
| 5 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 102.48 | ||||
| 6 | WP2180353 | Door, Ice (Replaces: 2180353) |
|
Immediately | $ 24.69 | ||||
| 7 | WPW10546285 | Support, Ice Door (Replaces: 2318020) |
|
Immediately | $ 104.97 | ||||
| 8 | WP4449745 | Screw (2) (Replaces: 4449745) |
|
$ 7.49 | |||||
| 9 | WP2305235 | Spigot (Replaces: 2305235) |
|
$ 140.07 | |||||
| 10 | 2318017 | Separator Assembly |
|
$ 119.36 | |||||
| 11 | N/P | Housing, Middle (not Available Order Item 12) |
|
- | |||||
| 12 | W10260620 | Housing Assembly (black) |
|
$ 376.10 | |||||
| 13 | W10133603 | Water, Paddle Asy (for Aluminum Model) (Replaces: 2305307GN) |
|
Immediately | $ 323.05 | ||||
| 14 | W10133603 | Ice, Paddle Asy (for Aluminum Model) (Replaces: 2305306GN) |
|
Immediately | $ 323.05 | ||||
| 15 | 2305219 | Cover, Control |
|
$ 88.56 | |||||
| 16 | WP2321746 | Electronic Control (includes No.15) (Replaces: 2321746) |
|
Immediately | $ 303.66 | ||||
| 17 | 2318076 | User Interface, Complete |
|
- | |||||
| 18 | 2318085B | Tray, Housing (black) |
|
$ 45.83 | |||||
| 18 | 2318085US | Tray, Housing (universal Silver) |
|
- | |||||
| 19 | W10222215 | Led Assembly (Replaces: 2305342) |
|
$ 147.18 | |||||
| 20 | 2307321B | Front Cover (black) |
|
$ 92.18 | |||||
| 20 | 2307321US | Front Cover (universal Silver) |
|
$ 99.29 | |||||
| 21 | W10759522 | Screw (Replaces: 488568) |
|
$ 7.75 |
