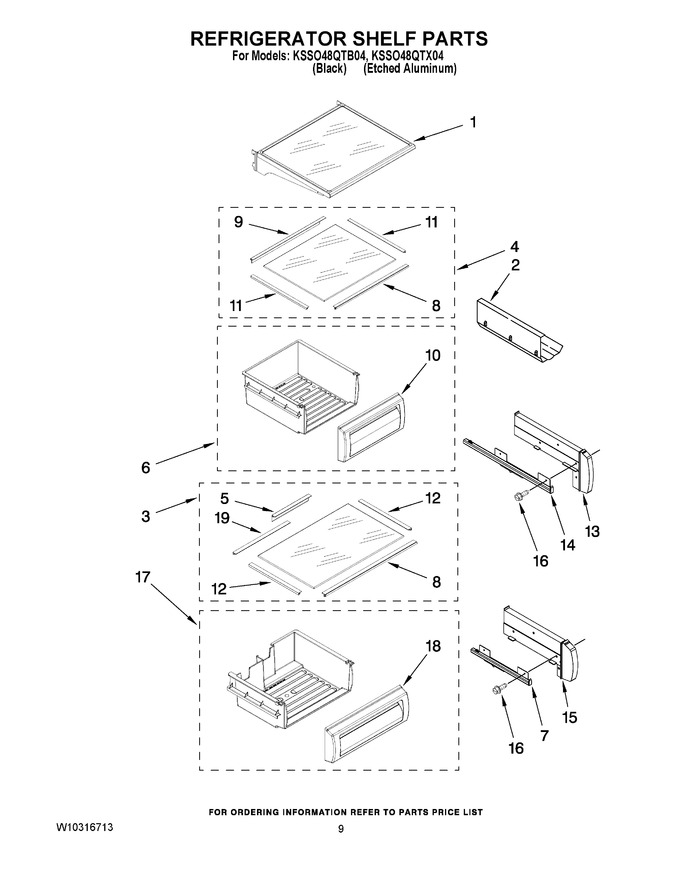

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2222593 | Shelf Assembly (4) (Replaces: 2222593) |
|
$ 304.91 | |||||
| 2 | W10777924 | Rack, Wine (Replaces: 2179375) |
|
$ 23.60 | |||||
| 3 | 2302843 | Assembly, Meat Pan Cover |
|
- | |||||
| 4 | 2302836 | Assembly, Crisper Cover |
|
$ 126.39 | |||||
| 5 | 2257583 | Trim, Glass Rear |
|
- | |||||
| 6 | W10407625 | Crisper Pan (2) (Replaces: 2252413) |
|
$ 169.64 | |||||
| 7 | 2302955 | Slide, Meat Pan (right Side) (Replaces: W10267075) |
|
$ 326.84 | |||||
| 7 | 2302954 | Slide, Meat Pan (left Side) (Replaces: W10267073) |
|
$ 327.13 | |||||
| 8 | N/P | Trim, Glass Front (not Serviceable) |
|
- | |||||
| 9 | 2256255 | Trim, Glass Rear |
|
- | |||||
| 10 | W10407625 | Front, Crisper Pan (Replaces: 2256249) |
|
$ 169.64 | |||||
| 11 | 2252255 | Trim, Glass (side) (crisper Pan) |
|
- | |||||
| 12 | 2256250 | Trim, Glass (side) (meat Pan) |
|
- | |||||
| 13 | 2256223 | Spacer, Crisper (left Side) (2) |
|
$ 80.47 | |||||
| 13 | 2256222 | Spacer, Crisper (right Side) (2) |
|
$ 84.99 | |||||
| 14 | 2302956 | Slide, Crisper (left Side) (Replaces: W10266848) |
|
$ 284.50 | |||||
| 14 | 2302957 | Slide, Crisper (right Side) (Replaces: W10266850) |
|
$ 217.46 | |||||
| 15 | 2256243 | Spacer, Meat Pan (left Side) |
|
$ 79.09 | |||||
| 15 | 2256244 | Spacer, Meat Pan (right Side) |
|
$ 98.76 | |||||
| 16 | WP8533928 | Screw (left Side- (8-18 X .750)) (Replaces: 8533928) |
|
Immediately | $ 7.82 | ||||
| 16 | W11830745 | Screw (right Side- (8-18 X 1.375)) (Replaces: 8533929) |
|
- | |||||
| 17 | W10407628 | Pan Assembly Meat (Replaces: 2256370) |
|
$ 162.79 | |||||
| 18 | WP2256367 | Front, Meat Pan (Replaces: 2256367) |
|
$ 174.06 | |||||
| 19 | 2257611 | Trim Glass |
|
- |
