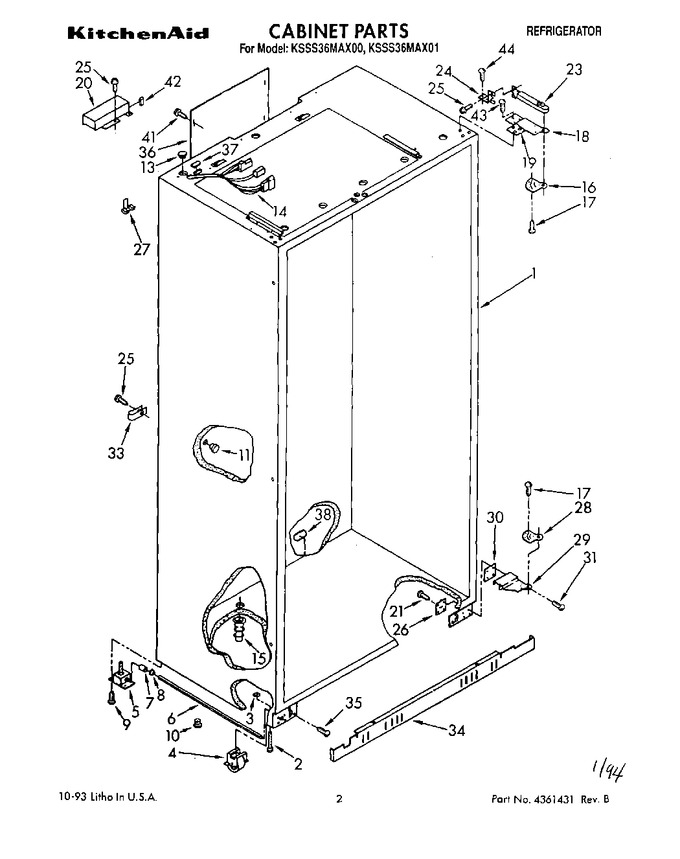

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 1112019 | Leveler, Front (2) |
|
- | |||||
| 3 | 1113249 | Retainer (2) |
|
- | |||||
| 4 | WPW10138054 | Roller, Front & Rear (4) (Replaces: 1112023) |
|
$ 43.18 | |||||
| 5 | 2005032 | Leveler, Adjustable (2) (Replaces: 1112695) |
|
Immediately | $ 190.54 | ||||
| 6 | 2000670 | Adjusting Rod (2) |
|
- | |||||
| 7 | 1113250 | Sleeve, Retainer (2) |
|
- | |||||
| 8 | 1112937 | Bushing, Rod (2) |
|
- | |||||
| 9 | 489359 | Screw |
|
- | |||||
| 10 | 1112939 | Hole Plug, Leveler |
|
- | |||||
| 11 | 1112849 | Cap, Grommet |
|
- | |||||
| 13 | 1113122 | Grommet, Wiring |
|
- | |||||
| 14 | 2000833 | Wiring Harness, Cabinet |
|
- | |||||
| 15 | 1112848 | Drain Fitting |
|
- | |||||
| 16 | 2000304 | Gap, Cover Assembly (top) (right Side) |
|
- | |||||
| 16 | 2000305 | Gap, Cover Assembly (top) (left Side) |
|
- | |||||
| 17 | 2001295 | Shoulder Screw |
|
$ 42.18 | |||||
| 18 | 2000307 | Hinge (top) (right Side) |
|
- | |||||
| 18 | 2000306 | Hinge (top) (left Side) |
|
- | |||||
| 19 | 2000770 | Shim, Hinge Top |
|
- | |||||
| 20 | 1112805 | Guard, Wiring |
|
- | |||||
| 21 | WP488163 | Screw (2) (Replaces: 487534) |
|
$ 7.54 | |||||
| 23 | 1112992 | Door Closer Assembly (2) |
|
- | |||||
| 24 | 2000333 | Bracket, Door Closer |
|
- | |||||
| 25 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 26 | 1112973 | Tap Plate, Hinge Butt (2) |
|
- | |||||
| 27 | 1113227 | Fastener (3) |
|
- | |||||
| 28 | 2001199 | Gap, Cover Assembly (bottom) (right Side) |
|
- | |||||
| 28 | 2001200 | Gap, Cover Assembly (bottom) (left Side) |
|
- | |||||
| 29 | 2000309 | Hinge (bottom) (right Side) |
|
- | |||||
| 29 | 2000308 | Hinge (bottom) (left Side) |
|
- | |||||
| 30 | 1112942 | Shim, Hinge (1) |
|
- | |||||
| 30 | 1112943 | Shim, Hinge (2) Bottom (4) |
|
- | |||||
| 31 | 2000490 | Screw, 1/4-28 X 3/4 |
|
- | |||||
| 33 | 2001266 | Tube Clamp |
|
- | |||||
| 34 | 1112137 | Grille Base, Front |
|
- | |||||
| 35 | 489238 | Screw (6) |
|
- | |||||
| 36 | 2000727 | Cover, Rear |
|
- | |||||
| 37 | 1113123 | Grommet, Wiring |
|
- | |||||
| 38 | 1113079 | Grommet, Flexible |
|
- | |||||
| 41 | W10678207 | Screw (Replaces: 2001377) |
|
$ 15.65 | |||||
| 42 | 2000530 | Grommet |
|
- | |||||
| 43 | WP8204624 | Screw (4) (Replaces: 2001415) |
|
$ 16.65 | |||||
| 44 | 489359 | Screw |
|
- |
