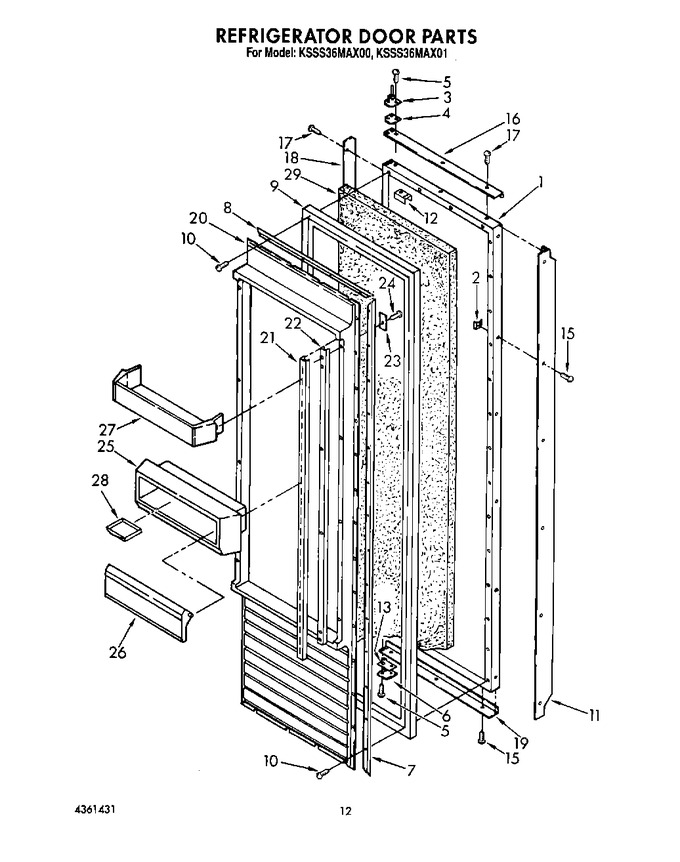

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000693		Door Panel, Refrigerator (also Order Item 29)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.50
3	2000696		Hinge Assembly, Top		Appelez-nous	-
4	2000303		Spacer		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2000698		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188319A		Door Gasket, Magnetic   (Replaces: 2000878)			Immediately	$ 316.41
10	WP489069		Screw, 7 X 1/2 (36)   (Replaces: 489101)			Immediately	$ 7.86
11	2000323		Handle, Door		Appelez-nous	-
12	2000349		Tap, Plate		Appelez-nous	-
13	2000697		Door, Spacer Bottom		Appelez-nous	-
15	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
16	2000315		Trim (top)		Appelez-nous	-
17	489112		Screw		Appelez-nous	-
18	2000314		Trim (side)		Appelez-nous	-
19	2000318		Trim (bottom)		Appelez-nous	-
20	1113952		Panel, Interior Door		Appelez-nous	-
21	1113951		Ladder, Shelf (2)		Appelez-nous	-
22	1112530		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
25	1112720		Bin, Utility		Appelez-nous	-
26	1112735		Door, Utility Bin		Appelez-nous	-
27	2000911		Door Shelf (4)		Appelez-nous	-
28	1125936		Butter, Tray		Appelez-nous	-
29	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
