SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim


03 - Refrigerator Control Panel


04 - Refrigerator Liner


05 - Freezer Control Panel


06 - Freezer Liner


07 - Top Grille And Unit Cover


08 - Refrigerator Shelf


09 - Freezer Shelf


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Air Flow And Reservoir


15 - Icemaker, Lit/optional

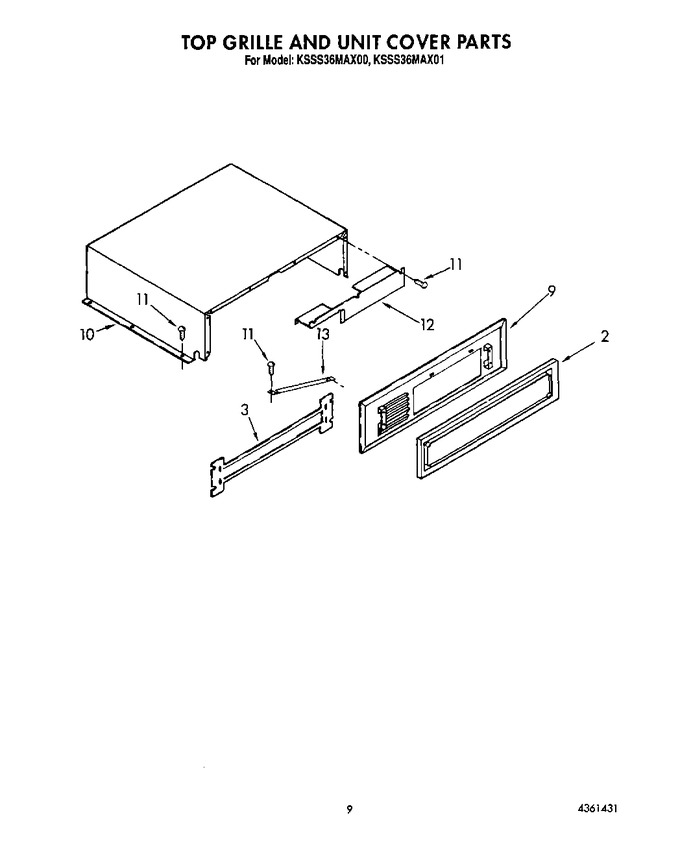

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2001053		Decorative Panel Assembly		Appelez-nous	-
2	2001315		Decorative Panel Assembly (for Model Ksss36max01)		Appelez-nous	-
3	1113313		Back Up Panel		Appelez-nous	-
9	2001577		Top Grille Assembly (for Model Ksss36max01)		Appelez-nous	-
9	2000844		Top Grille Assembly		Appelez-nous	-
10	2001088		Cover, Unit		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
12	1113300		Cover, Component Assembly		Appelez-nous	-
13	1113317		Brace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
