SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker Trim

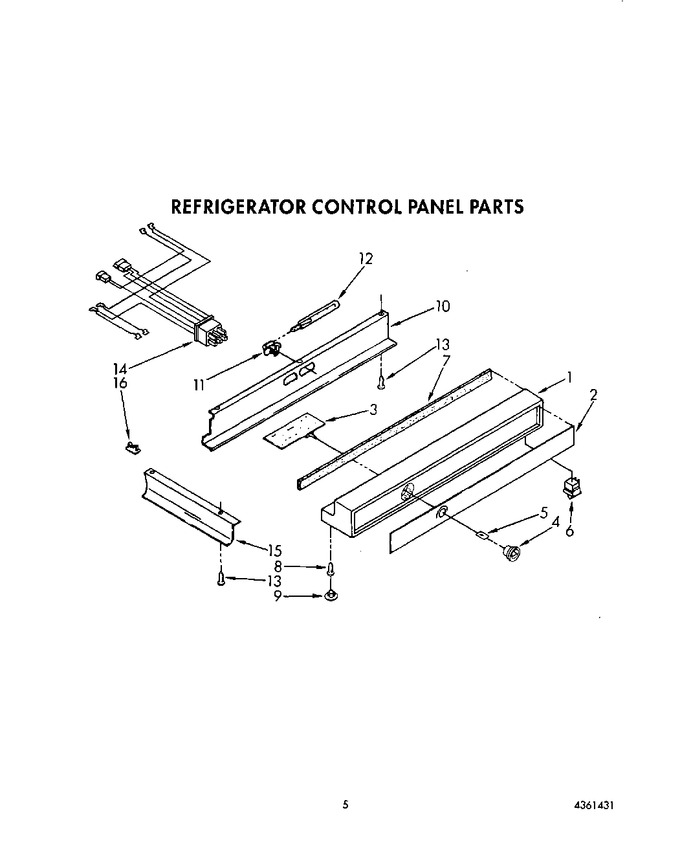

03 - Refrigerator Control Panel


04 - Refrigerator Liner


05 - Freezer Control Panel


06 - Freezer Liner


07 - Top Grille And Unit Cover


08 - Refrigerator Shelf


09 - Freezer Shelf


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Air Flow And Reservoir


15 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112640		Control Panel		Appelez-nous	-
2	2000974		Inlay, Control Panel		Appelez-nous	-
3	2000789		Circuit Board				$ 124.96
4	1116853		Knob, Air Control		Appelez-nous	-
5	837444		Knob, Retainer		Appelez-nous	-
6	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
7	1113133		Seal, Control Panel		Appelez-nous	-
8	489260		Screw (3)		Appelez-nous	-
9	2000153		Hole Plug (3)		Appelez-nous	-
10	1113773		Shield, Control Panel		Appelez-nous	-
11	1112613		Socket, Light (2)		Appelez-nous	-
12	WP548049		Light Bulb (2)   (Replaces: 547225)				$ 90.67
13	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
14	2001074		Control Harness		Appelez-nous	-
15	2001141		Channel, Wiring		Appelez-nous	-
16	1115375		Clip, Wiring (2)				$ 11.15

    View Diagram in Separate Window       Print Part List
