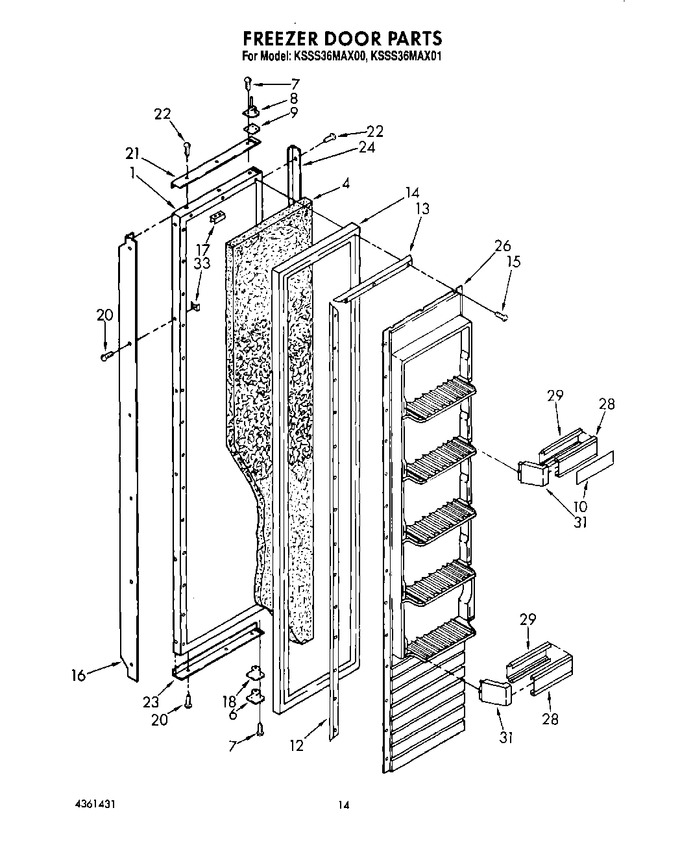

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000714		Exterior Door Panel, Freezer (also Order Item 4)		Appelez-nous	-
4	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
6	2000720		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2000721		Hinge, Top		Appelez-nous	-
9	2000303		Door Spacer		Appelez-nous	-
10	2001031		Overlay, Shelf		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2000877		Door Gasket, Magnetic		Appelez-nous	-
15	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 7.86
16	2000324		Handle, Door		Appelez-nous	-
17	2000349		Tap, Plate		Appelez-nous	-
18	2000697		Door, Spacer		Appelez-nous	-
20	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.79
21	2000326		Trim (top)		Appelez-nous	-
22	489112		Screw		Appelez-nous	-
23	2000329		Trim (bottom)		Appelez-nous	-
24	2000325		Trim (side)		Appelez-nous	-
26	2000177		Panel, Interior Door		Appelez-nous	-
28	1112765		Door Shelf, Outer Trim		Appelez-nous	-
29	1112770		Door Shelf, Inner Trim		Appelez-nous	-
31	1112763		Support, Trim Ends				$ 32.70
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
