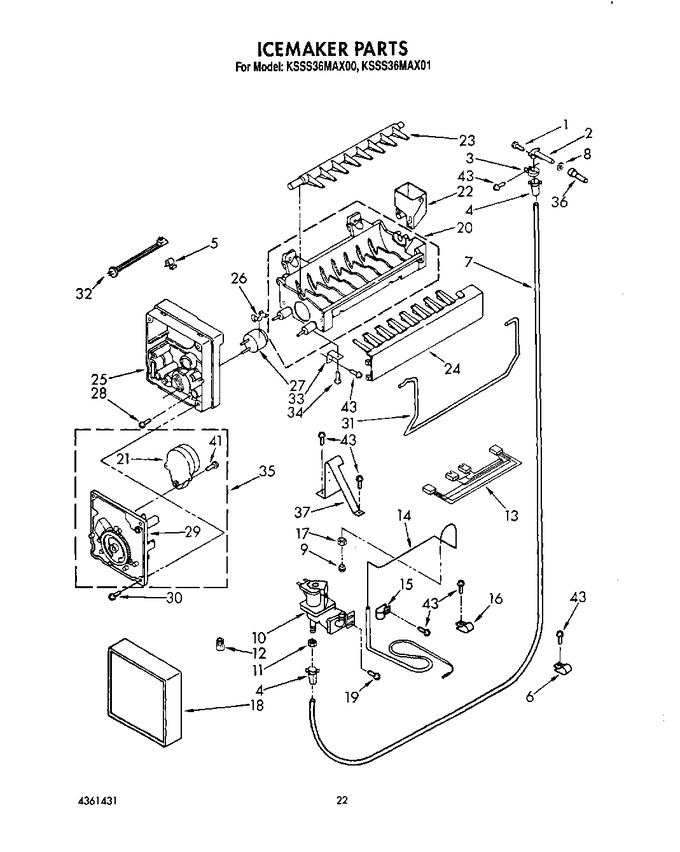

15 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
2	2000829		Fitting, Water Tube		Appelez-nous	-
3	WP488878		Clamp, Tube   (Replaces: 2001087)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	2000392		Wire Clip		Appelez-nous	-
7	2001336		Tube, Water (to Ice Maker)		Appelez-nous	-
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WP487627		Sleeve, Nut   (Replaces: 487627)				$ 11.17
10	WP2315576		Valve, Solenoid   (Replaces: 2001318)			Immediately	$ 95.98
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
12	227991		Connector Wire		Appelez-nous	-
13	2000837		Water Valve, Harness		Appelez-nous	-
14	8003RP		Copper, Water Line   (Replaces: 2001353)			Immediately	$ 43.29
15	489348		Clamp, Nylon Valve		Appelez-nous	-
16	1113066		Clamp Tube		Appelez-nous	-
17	WP245183		Nut   (Replaces: 487857)				$ 7.79
18	1113703		Cover		Appelez-nous	-
19	00487294		Screw, 8-32 X 3/8 (2)   (Replaces: 487294)				$ 175.09
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
20	WPW10190929		Mold & Heater (also Order   (Replaces: 628228)				$ 233.15
21	W10190935		Motor   (Replaces: 628258)			Immediately	$ 110.07
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 627790)				$ 104.57
26	WP2315522		Retainer, Thermostat (2)   (Replaces: 627796)				$ 11.05
27	542639		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 109.18
28	8533917		Screw, 10-32 X 49/64   (Replaces: 489322)				$ 13.37
29	00628357		Module, Assembly   (Replaces: 628357)			Immediately	$ 83.68
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 84.53
32	1113403		Harness, Wiring		Appelez-nous	-
33	WP2256087		Bracket   (Replaces: 627915)				$ 93.00
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 21, 29, 41)   (Replaces: 628366)			Immediately	$ 110.07
36	2001098		Water Inlet Tube		Appelez-nous	-
37	2000803		Water Valve Mounting Bracket		Appelez-nous	-
41	489136		Screw, (2) 3-24 X 3/8				$ 10.29
43	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
100	4317943		Complete Icemaker Assembly			Immediately	$ 188.95
100	4318638		Front Panel Kit (almond)		Appelez-nous	-
100	4318632		Front Panel Kit (black)		Appelez-nous	-
100	4318635		Front Panel Kit (white)		Appelez-nous	-
100	978849		Static Cleaner				$ 15.82
100	4318641		Front Panel Kit (stainless Steel)		Appelez-nous	-
	LIT2001094		Installation Instructions		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2001362		Use & Care Guide		Appelez-nous	-
	LIT2000850		Service & Wiring Sheet		Appelez-nous	-
	LIT2001676		Energy Label		Appelez-nous	-
