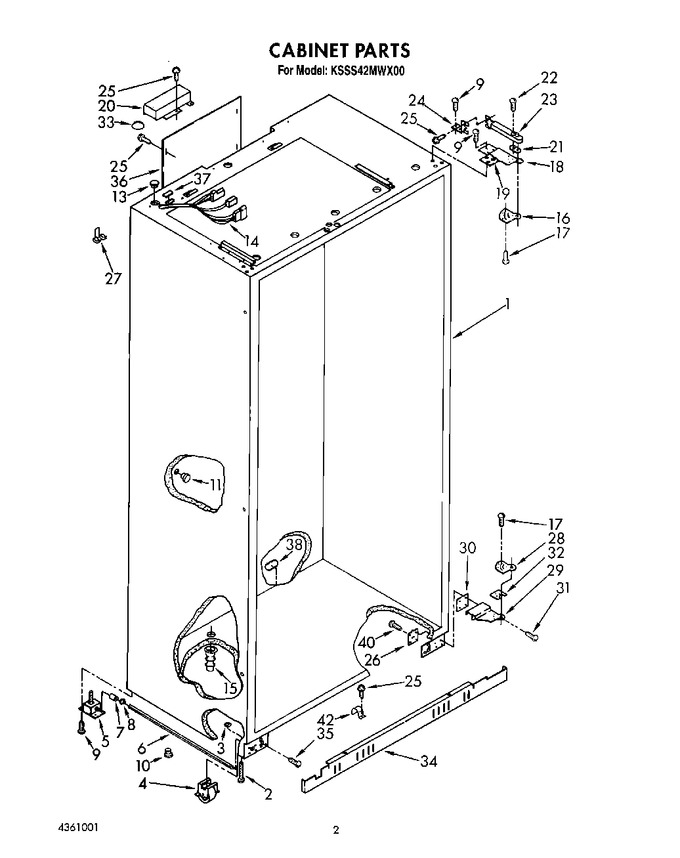

02 - Cabinet


03 - Cabinet Trims And Breaker Trim


04 - Freezer Liner


05 - Refrigerator Shelf


06 - Freezer Shelf


07 - Refrigerator Door


08 - Refrigerator Control Panel


09 - Freezer Door


10 - Freezer Control Panel


11 - Upper Unit, Lit/optional


12 - Lower Unit And Tube


13 - Top Grille And Unit Cover


14 - Air Flow And Reservoir


15 - Icemaker


16 - Refrigerator Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	1112019		Leveler, Front (2)		Appelez-nous	-
3	1113249		Retainer (2)		Appelez-nous	-
4	WPW10138054		Roller, Front & Rear (4)   (Replaces: 1112023)				$ 45.34
5	2005032		Leveler, Adjustable (2)   (Replaces: 1112695)			Immediately	$ 200.07
6	1112936		Adjusting Rod (2)		Appelez-nous	-
7	1113250		Sleeve, Retainer (2)		Appelez-nous	-
8	1112937		Bushing, Rod (2)		Appelez-nous	-
9	2000489		Screw, 10-32 X 5/8		Appelez-nous	-
10	1112939		Hole Plug, Leveler		Appelez-nous	-
11	1112849		Cap, Grommet		Appelez-nous	-
13	1113122		Grommet, Wiring		Appelez-nous	-
14	1113708		Wiring Harness, Cabinet		Appelez-nous	-
15	1112848		Drain Fitting		Appelez-nous	-
16	1113217		Gap, Cover Assembly (top) (right Side)		Appelez-nous	-
16	1113216		Gap, Cover Assembly (top) (left Side)		Appelez-nous	-
17	1112906		Shoulder, Screw		Appelez-nous	-
18	1112912		Hinge (top) (right Side)		Appelez-nous	-
18	1112901		Hinge (top) (left Side)		Appelez-nous	-
19	1112988		Shim, Hinge Top (4)		Appelez-nous	-
20	1112805		Guard, Wiring		Appelez-nous	-
21	1112907		Door Closer, Fixed Cam		Appelez-nous	-
22	WP486579		Screw, 8-32 X 5/16   (Replaces: 487818)				$ 7.89
23	1112992		Door Closer Assembly (2)		Appelez-nous	-
24	1112948		Bracket, Door Closer (right Side)		Appelez-nous	-
24	1112947		Bracket, Door Closer (left Side)		Appelez-nous	-
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
26	1112973		Tap Plate, Hinge Butt (2)		Appelez-nous	-
27	1113227		Fastener (3)		Appelez-nous	-
28	1113216		Gap, Cover Assembly (bottom) (right Side)		Appelez-nous	-
28	1113217		Gap, Cover Assembly (bottom) (left Side)		Appelez-nous	-
29	1112919		Hinge (bottom) (left Side)		Appelez-nous	-
29	1112923		Hinge (bottom) (right Side)		Appelez-nous	-
30	1112943		Shim, Hinge Bottom (4)		Appelez-nous	-
31	2000490		Screw, 1/4-28 X 3/4		Appelez-nous	-
32	1113809		Spacer, Lower Door Hinge		Appelez-nous	-
33	1105408		Seal, Hole		Appelez-nous	-
34	1112138		Grille Base, Front		Appelez-nous	-
35	489238		Screw (6)		Appelez-nous	-
36	1112835		Cover, Rear		Appelez-nous	-
37	1113123		Grommet, Wiring		Appelez-nous	-
38	1113079		Grommet, Flexible		Appelez-nous	-
40	WP488163		Screw, 8 X 3/4   (Replaces: 488248)				$ 7.92
42	1112553		Clamp, Tube		Appelez-nous	-
42	1113067		Clamp, Tube		Appelez-nous	-
