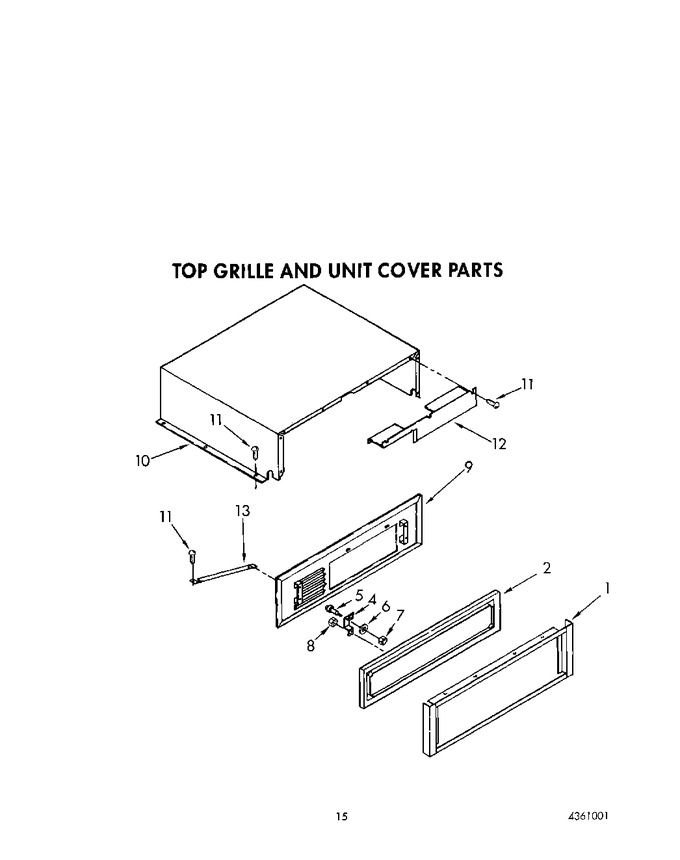

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1113867 | Grille, Frame Assembly |
|
- | |||||
| 2 | 1113864 | Decorative Panel Assembly |
|
- | |||||
| 3 | 1113355 | Back Up Panel |
|
- | |||||
| 4 | 1113324 | Bracket, Keyhole Mounting |
|
- | |||||
| 5 | 1113326 | Shoulder Screw (4) |
|
- | |||||
| 6 | 489232 | Spring Washer (4) |
|
- | |||||
| 7 | WP486255 | Nut (4) (Replaces: 486255) |
|
$ 6.47 | |||||
| 8 | 489172 | Nut (8) |
|
- | |||||
| 9 | 2000124 | Top Grille Assembly |
|
- | |||||
| 10 | 1113490 | Cover, Unit |
|
- | |||||
| 11 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 12 | 1113300 | Cover, Component Assembly |
|
- |
