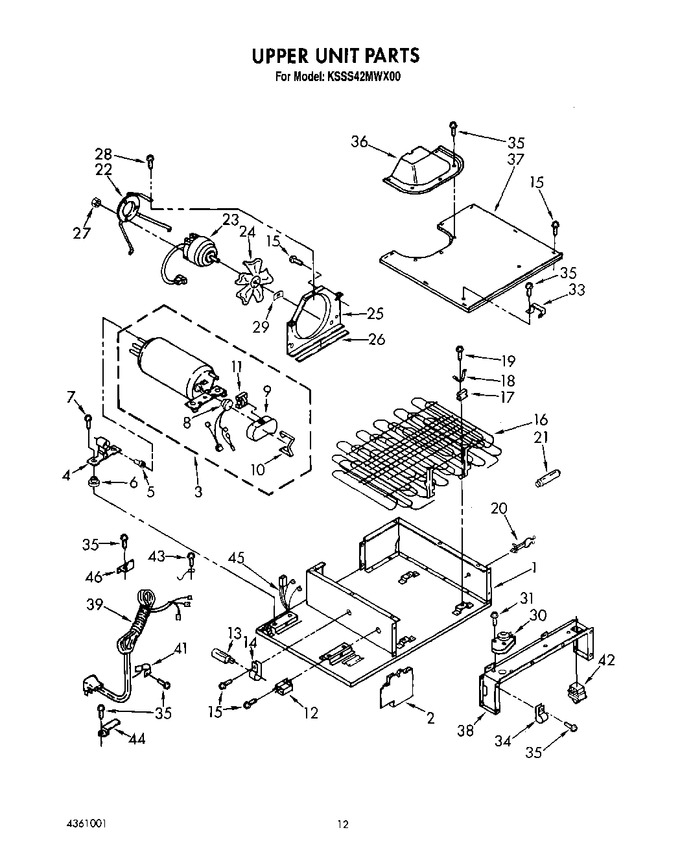

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1113005 | Assembly, Unit Base |
|
- | |||||
| 2 | 1113386 | Assembly, Sound Barrier |
|
- | |||||
| 3 | 876765 | Tube Kit |
|
Immediately | $ 86.33 | ||||
| 3 | 4210577 | Compressor (includes Items 8, 9, 10 & 11) |
|
- | |||||
| 4 | 1105220 | Bracket, Mounting |
|
- | |||||
| 5 | 1105219 | Grommet, Compressor Bracket |
|
- | |||||
| 6 | 1105200 | Grommet, Mounting |
|
- | |||||
| 7 | 489334 | Screw |
|
- | |||||
| 8 | 1113273 | Overload |
|
- | |||||
| 9 | 1105221 | Terminal Cover |
|
- | |||||
| 10 | 1105222 | Strap, Cover |
|
- | |||||
| 11 | 1108066 | Relay |
|
- | |||||
| 12 | WPW10662129 | Running, Capacitor (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 13 | 1108065 | Capacitor, Start |
|
- | |||||
| 14 | 1108033 | Clamp |
|
- | |||||
| 15 | 489368 | Screw, 8 X 3/8 |
|
- | |||||
| 16 | 1113015 | Condenser |
|
- | |||||
| 17 | 2000645 | Grommet (4) |
|
- | |||||
| 18 | 1113019 | Clamp (4) |
|
- | |||||
| 19 | 487522 | Screw, 8-32 X 5/8 (4) |
|
- | |||||
| 20 | 1113228 | Wire Tie (2) |
|
- | |||||
| 21 | 1108023 | Drier |
|
- | |||||
| 22 | 1113083 | Mounting Bracket, Motor |
|
- | |||||
| 23 | 1113081 | Motor, Fan |
|
- | |||||
| 24 | 1113082 | Blade, Fan |
|
- | |||||
| 25 | 2000190 | Orifice, Fan |
|
- | |||||
| 26 | 1113303 | Gasket, Orifice |
|
- | |||||
| 27 | WP488130 | Nut (3) (Replaces: 488130) |
|
$ 6.97 | |||||
| 28 | WPW10141645 | Screw, 8 X 1/2 (3) (Replaces: 489084) |
|
$ 7.67 | |||||
| 29 | WP486692 | Speed Nut (Replaces: 486692) |
|
$ 7.82 | |||||
| 30 | CC901 | Defrost Timer (10 Hour) (Replaces: 1127570) |
|
Immediately | $ 58.27 | ||||
| 31 | WP3388228 | Screw, 6-20 X 3/8 (Replaces: 488911) |
|
$ 6.95 | |||||
| 33 | 1113066 | Clamp, Tube (2) |
|
- | |||||
| 34 | 489348 | Clamp-nylon |
|
- | |||||
| 35 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 36 | 1113075 | Cover, Fan |
|
- | |||||
| 37 | 1113028 | Cover, Condenser |
|
- | |||||
| 38 | 1113076 | Extension, Housing |
|
- | |||||
| 39 | 937360 | Cord, Service |
|
- | |||||
| 41 | 1113162 | Clamp, Cord (2) |
|
- | |||||
| 42 | WP2266802 | Switch, Power Disconnect (Replaces: 1113229) |
|
$ 103.89 | |||||
| 43 | 303776 | Screw, Ground (Replaces: 488879) |
|
- | |||||
| 44 | 653035 | Clip, Cord Plug |
|
- | |||||
| 45 | 1113748 | Wiring Harness, Unit Compartment |
|
- | |||||
| 46 | 4318639 | Front Panel Kit (almond) |
|
- | |||||
| 46 | 1113039 | Stop |
|
- | |||||
| 46 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 46 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 46 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 46 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 46 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 46 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 46 | 4318419 | Top Grille Trim Kit (8``) |
|
- | |||||
| 46 | 4318418 | Top Grille Trim Kit (7-1/2``) |
|
- | |||||
| 46 | 4318636 | Front Panel Kit (white) |
|
- | |||||
| 46 | 4318633 | Front Panel Kit (black) |
|
- | |||||
| 46 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 46 | 4318642 | Front Panel Kit (stainless Steel) |
|
- | |||||
| 46 | 978849 | Static Cleaner |
|
$ 15.82 | |||||
| LIT1113719 | Use & Care Guide |
|
- | ||||||
| LIT4361001 | Parts List Rev. A |
|
- | ||||||
| LIT2000495 | Installation Instructions |
|
- | ||||||
| LIT628107 | Modular Icemaker Service Sheet |
|
- | ||||||
| LIT1113730 | Service & Wiring Sheet |
|
- | ||||||
| LIT2000145 | Energy Label |
|
- |
