SELECT A DIAGRAM
New Model Search:

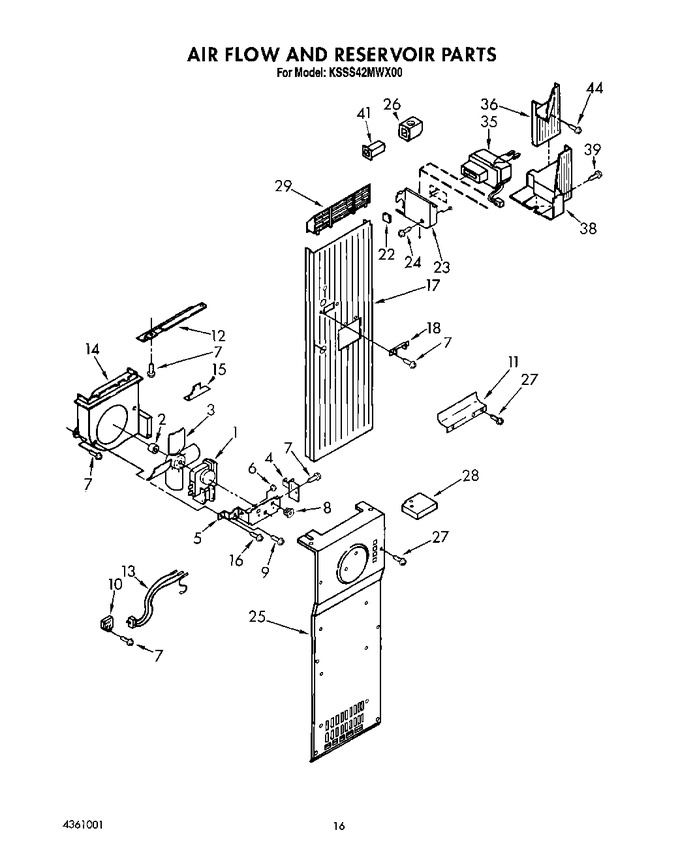

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SM999 | Fan, Motor (Replaces: 945523) |
|
Immediately | $ 30.26 | ||||
| 2 | 992953 | Ring, Compression |
|
- | |||||
| 3 | 992920 | Blade, Fan |
|
$ 39.91 | |||||
| 4 | 548263 | Bracket (double) |
|
- | |||||
| 5 | 938224 | Bracket (single) |
|
- | |||||
| 6 | 548268 | Grommet |
|
- | |||||
| 7 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 8 | 538449 | Grommet, Screw |
|
- | |||||
| 9 | WP489128 | Screw, Ground (Replaces: 488500) |
|
$ 10.88 | |||||
| 10 | 942842 | Terminal Block |
|
- | |||||
| 11 | 1112529 | Baffle, Evaporator |
|
- | |||||
| 12 | 1112734 | Channel, Wiring |
|
- | |||||
| 13 | 1112703 | Wiring Harness, Fan Motor |
|
- | |||||
| 14 | 1111212 | Scroll, Fan (also Order Item 15) |
|
- | |||||
| 15 | 1112976 | Shield, Electric |
|
- | |||||
| 16 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 7.86 | ||||
| 17 | 2000059 | Assembly, Air Duct |
|
- | |||||
| 18 | 2000048 | Air Deflector, Icemaker |
|
- | |||||
| 22 | 1112869 | Gasket, Air Baffle |
|
- | |||||
| 23 | 1113942 | Cover, Air Outlet |
|
- | |||||
| 24 | 488748 | Screw, 8-32 X 1-1/2 |
|
- | |||||
| 25 | 1112276 | Cover, Evaporator |
|
- | |||||
| 26 | 1112565 | Connector, Meat Pan Duct |
|
- | |||||
| 27 | WP488729 | Screw, 8 X 1/2 (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 28 | 1112840 | Baffle, Evaporator |
|
- | |||||
| 29 | 1112852 | Diffuser, Air Duct |
|
$ 8.57 | |||||
| 35 | 1112875 | Assembly, Air Baffle |
|
- | |||||
| 36 | 1113147 | Insulation, Air Diffuser |
|
- | |||||
| 38 | 1112878 | Cover, Air Diffuser |
|
- | |||||
| 39 | WP489174 | Screw, 8 X 2 (Replaces: 489174) |
|
$ 6.95 | |||||
| 41 | 1112265 | Tube, Meat Pan |
|
- | |||||
| 44 | WP488163 | Screw, 8 X 3/4 (Replaces: 488248) |
|
$ 7.54 |
