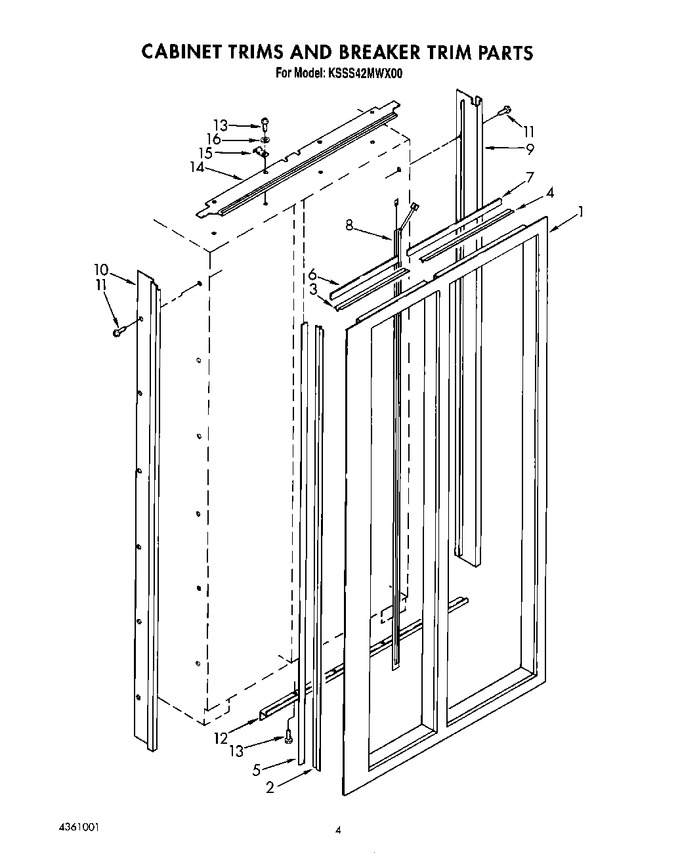

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1112676 | Breaker Trim, One Piece |
|
- | |||||
| 2 | 1113277 | Retainer, Side (4) |
|
- | |||||
| 3 | 1112690 | Retainer Trim Freezer (2) |
|
- | |||||
| 4 | 1112686 | Retainer Trim Refrigerator (2) |
|
- | |||||
| 5 | 1112682 | Magnet, Side (4) |
|
- | |||||
| 6 | 1112684 | Magnet, Freezer (2) |
|
- | |||||
| 7 | 1112680 | Magnet, Refrigerator (2) |
|
- | |||||
| 8 | 1112711 | Heater, Mullion |
|
- | |||||
| 9 | 1113836 | Trim (r.s.) |
|
- | |||||
| 10 | 1113835 | Trim (l.s.) |
|
- | |||||
| 11 | 489238 | Screw (12) |
|
- | |||||
| 11 | 487246 | Screw, (repair) |
|
- | |||||
| 12 | 1112801 | Trim (bottom) |
|
- | |||||
| 13 | WPW10141625 | Screw, 8-32 X 1/2 (8) (Replaces: 488649) |
|
$ 22.22 | |||||
| 14 | 1113843 | Spacer Trim, Grille |
|
- | |||||
| 15 | 1113604 | Retainer, Unit Base (2) |
|
- | |||||
| 16 | 487944 | Washer (2) |
|
- |
