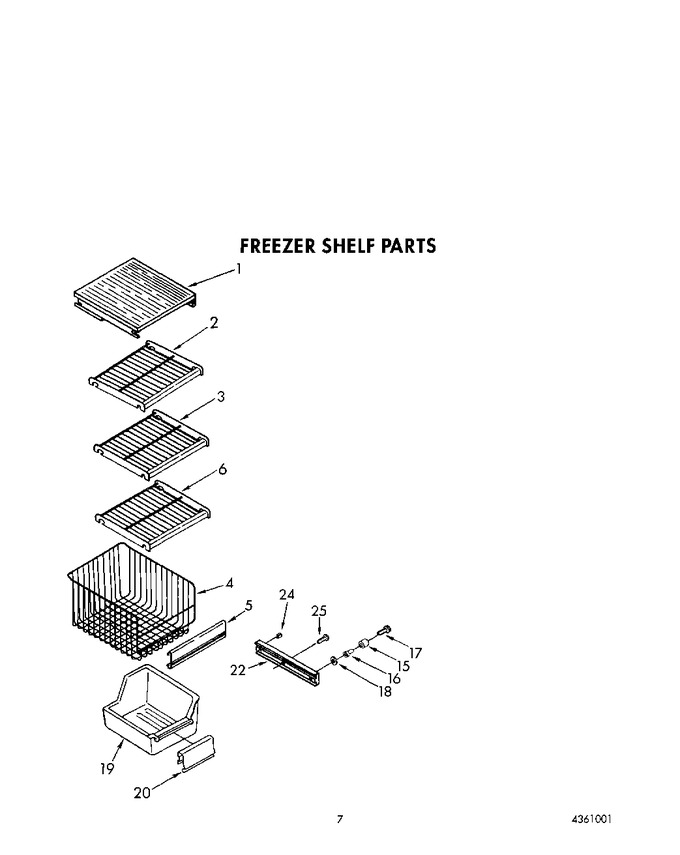

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1113629		Solid Shelf		Appelez-nous	-
2	1113565		Shelf, Fixed (2)		Appelez-nous	-
3	1113634		Shelf-fixed		Appelez-nous	-
4	1113640		Basket, Freezer		Appelez-nous	-
5	1113643		Trim, Basket		Appelez-nous	-
6	1113637		Shelf-fixed		Appelez-nous	-
15	1113870		Roller		Appelez-nous	-
16	1113871		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw, 10-16 X 3/4   (Replaces: 489211)			Immediately	$ 11.36
18	488307		Washer		Appelez-nous	-
19	W11625904		Pan, Ice Cube   (Replaces: 1122529)				$ 67.83
20	1122530		Pan, Trim Ice		Appelez-nous	-
22	2000061		Slide, Basket R.s.		Appelez-nous	-
22	2000062		Slide, Basket L.s.		Appelez-nous	-
24	1113169		Stop, Roller				$ 11.28
25	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
