Diagram # Part Number Description Series Availability Ships Price Add to Cart
92 M0219704 Screw Appelez-nous -
93 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

171 M0227217 Screw, Sm Appelez-nous -
192 12041705 Assy, Mc Back Appelez-nous -
352 12039903 Back, M.c. Appelez-nous -
431 10581305 Cover, Ht Exch Appelez-nous -
711 M0310319 Plug Button Appelez-nous -
721 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

1001 A3189357 Gasket, Foam Appelez-nous -
1941 WPB2150504 Drier   (Replaces: B2150504) Special Order $ 136.98

1961 10547001 Clip, Drier Appelez-nous -
1981 M0232317 Screw Appelez-nous -
1991 M0103904 Clamp, Speed Appelez-nous -
2001 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

2111 10916505 Cord-power Appelez-nous -
2541 10953201 Mount-cradle Appelez-nous -
4023 12147902 Harness-outer Cab Appelez-nous -
5502 M0227217 Screw, Sm Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

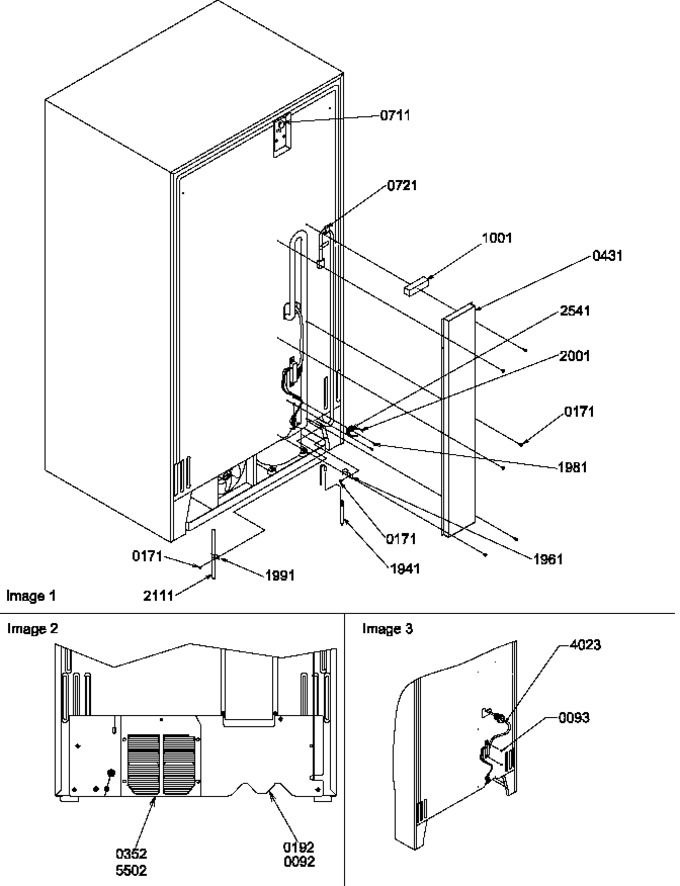

Diagram for SG19SL (BOM: P1193702W L)
