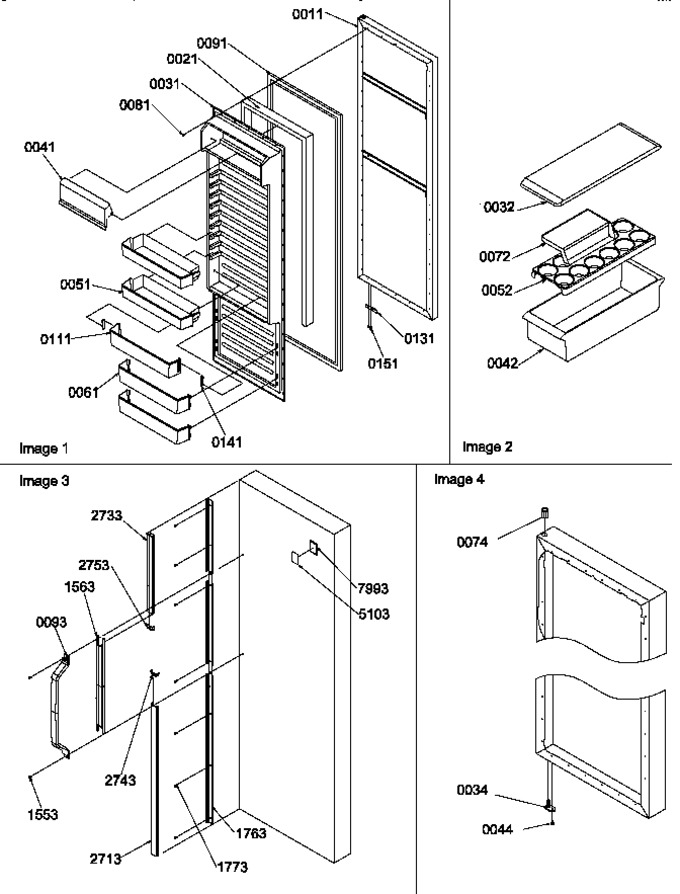

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10580904L		Ass`y, Ref Dr (alm)		Appelez-nous	-
21	B0523563		Insulation Ft. K		Appelez-nous	-
31	10579901		Liner, Refr Door		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	10581004		Door, Dairy		Appelez-nous	-
42	10423128		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	10580004		Bucket-ref Door		Appelez-nous	-
52	10436505		Tray, Egg		Appelez-nous	-
61	10580104		Shelf, Ref Door		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
74	10961001		Bushing, Door (wht)		Appelez-nous	-
81	M0219730		Screw				$ 7.65
91	10359705		Gasket, Door (w Ref)		Appelez-nous	-
93	12139302		Handle, Door (almond)		Appelez-nous	-
111	10580302		Shelf-gallon		Appelez-nous	-
131	C8972406		Stop, L Door		Appelez-nous	-
141	10202001		Clip, Retainer		Appelez-nous	-
151	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
1553	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
1563	10810402		Trim, L Ctr Door		Appelez-nous	-
1763	10852214		Retainer-ref Trim		Appelez-nous	-
1773	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
2713	10810510		Trim, Bot Ref Dr L		Appelez-nous	-
2733	10810310		Trim-l Top Ref Dr		Appelez-nous	-
2743	10953111		Insert, Trim(white)		Appelez-nous	-
2753	10953112		Insert, Trim(white)		Appelez-nous	-
5103	10992102		Insert- L Nameplate		Appelez-nous	-
7993	10992002		Base, Nameplate		Appelez-nous	-
