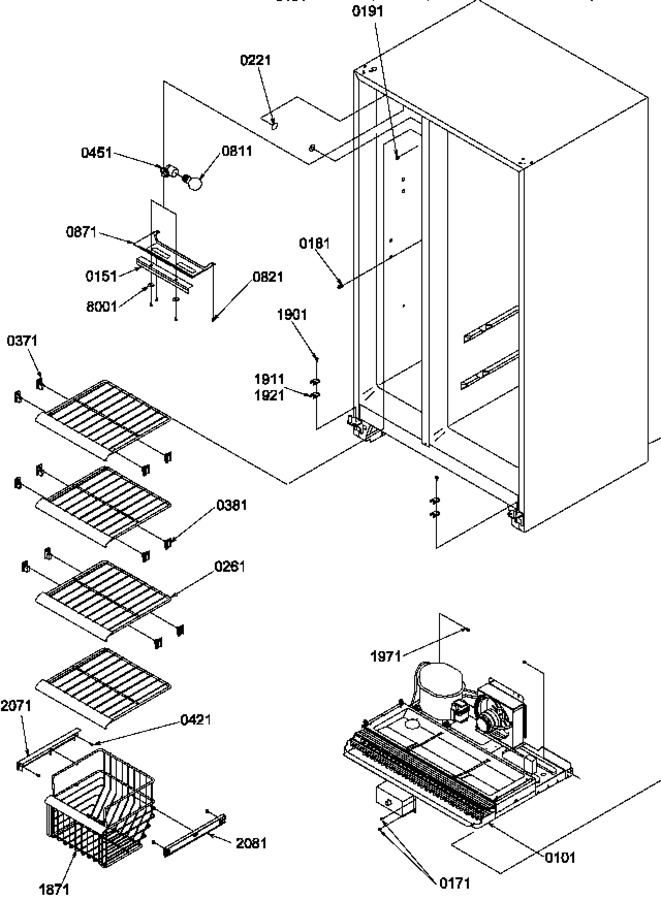

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	Y00000000		See Note Mc Assy		Appelez-nous	-
151	10014715		Shield, Light		Appelez-nous	-
171	M0227217		Screw, Sm		Appelez-nous	-
181	M0322202		Tie Wire		Appelez-nous	-
191	M0580007		Grommet, Screw		Appelez-nous	-
221	M0310305		Plug, Button (wht)		Appelez-nous	-
261	12012605		Shelf-sta Fz		Appelez-nous	-
371	12015002		Support, Shelf (lt)				$ 7.38
381	WP10941102		Support, Shelf (rt)				$ 11.81
421	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
451	C8973404		Socket-light		Appelez-nous	-
811	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
821	M0238846		Screw-sm		Appelez-nous	-
871	10493302		Cover, Frz Light		Appelez-nous	-
1871	12012001		Basket, Freezer		Appelez-nous	-
1901	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
1911	B8387703		Shim, Door Closure		Appelez-nous	-
1921	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
1971	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
2071	12015101		Rail, Shelf (lt)		Appelez-nous	-
2081	10972801		Rail, Shelf (rt)		Appelez-nous	-
8001	M0270508		Washer		Appelez-nous	-
