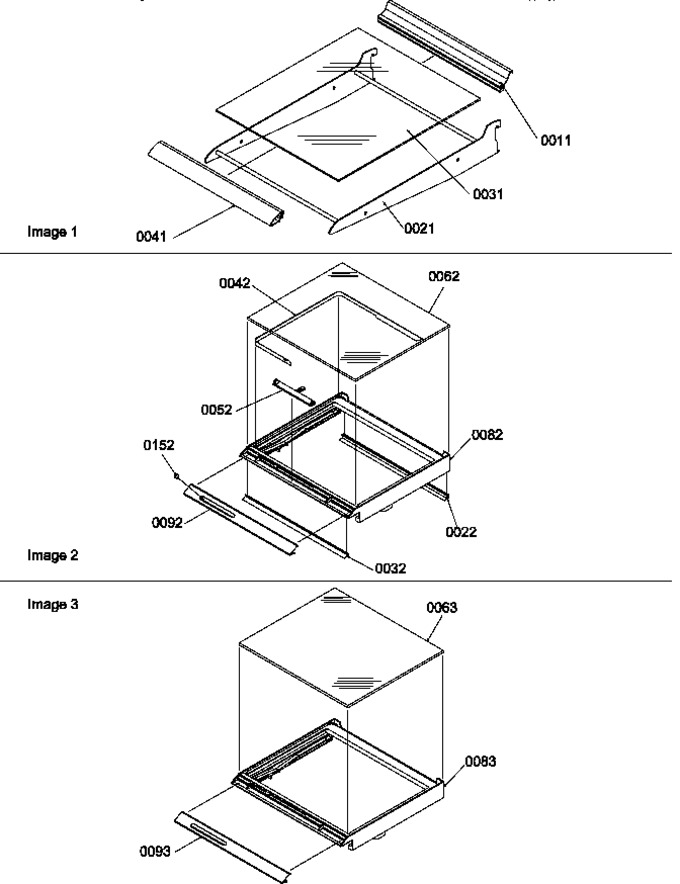

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10946004		Extr-rear Shelf		Appelez-nous	-
21	10875304		Frame, Glass Shelf		Appelez-nous	-
22	D7718402		Seal Crisper		Appelez-nous	-
31	10370076		Glass-shelf		Appelez-nous	-
32	10523402		Seal, Crisper Frt		Appelez-nous	-
41	10459909		Extr-front Shelf		Appelez-nous	-
42	10882902		Band, Crisper		Appelez-nous	-
52	D7860603		Slide		Appelez-nous	-
62	Y10370045		Glass, Shelf		Appelez-nous	-
63	10370046		Glass, Shelf		Appelez-nous	-
82	10470102		Frame, Crisper		Appelez-nous	-
83	10470101		Frame, Crisper		Appelez-nous	-
92	10873912		Trim-crisp Fr		Appelez-nous	-
93	10873915		Trim-crisp Fr		Appelez-nous	-
152	10038402		Knob - Crisper		Appelez-nous	-
