SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts And Toe Grille


03 - Control Assy


04 - Drain System, Rollers, And Evap Assy


05 - Fz Door And Accessories


06 - Fz Shelves And Light


07 - Ice Maker Parts And Add On Ice Maker Kit


08 - Machine Compartment


09 - Ref Door And Accessories


10 - Ref/fz Shelves, Lights, And Hinges


11 - Shelf And Crisper Assemblies

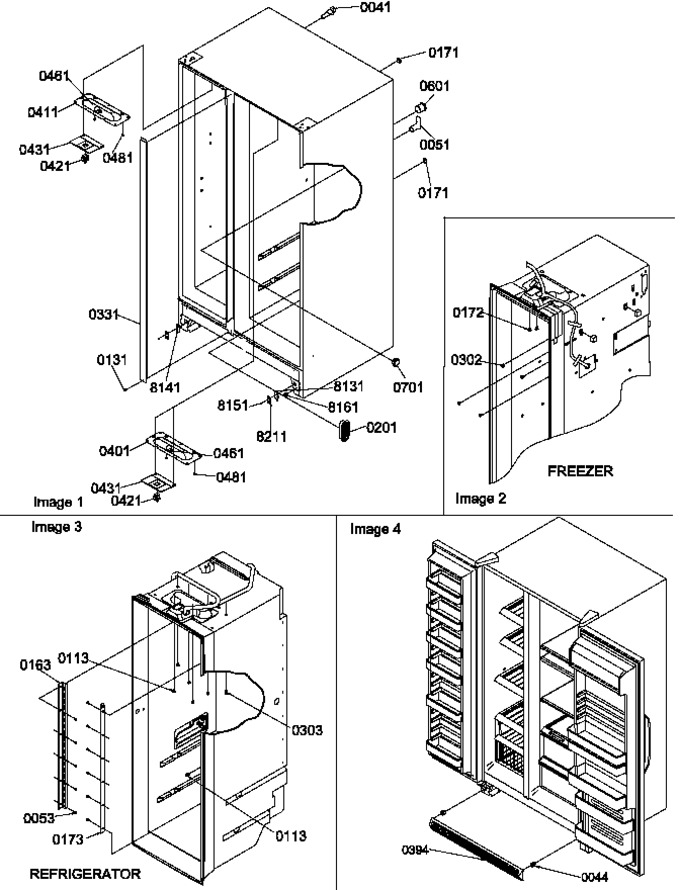

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
41	12023401		Assy, Fill Tube		Appelez-nous	-
44	M0117302		Clip, Grille		Appelez-nous	-
51	C8971903		Tunnel, Heat Exchanger		Appelez-nous	-
53	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
113	M0580007		Grommet, Screw		Appelez-nous	-
131	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
163	D7789808		Ladder, Cantilever		Appelez-nous	-
171	A3080001		Plug, Button (blk)		Appelez-nous	-
172	M0580007		Grommet, Screw		Appelez-nous	-
173	D7789809		Ladder, Cantilever		Appelez-nous	-
201	D7785401		Grille-rtn Air		Appelez-nous	-
302	M0581001		Grommet, Screw		Appelez-nous	-
303	M0581001		Grommet, Screw		Appelez-nous	-
331	Y00000000		See Note L Vt Mull-pnt		Appelez-nous	-
394	10492005		Assy, Toe Grille (almond)		Appelez-nous	-
401	D7716409		Housing-ref Light		Appelez-nous	-
411	D7760102		Housing Frz Light		Appelez-nous	-
421	W11384469		Switch   (Replaces: C3680304)			Immediately	$ 39.09
431	D7297603		Cover, Light Sw		Appelez-nous	-
461	B5733302		Clip, Ground		Appelez-nous	-
481	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
601	10703701		Tunnel, Wire		Appelez-nous	-
701	A3187801		Retainer		Appelez-nous	-
8131	12146801		Spacer, Btm Hinge		Appelez-nous	-
8141	12146802		Shim-lh Bot Hinge		Appelez-nous	-
8151	A4539631		Rivet, Pop (wht)		Appelez-nous	-
8161	12147602		Cam-hinge Adj		Appelez-nous	-
8211	12187601		Shim-bot Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
