Diagram # Part Number Description Series Availability Ships Price Add to Cart
112 D7868606 Box, Control Top Appelez-nous -
142 10383201 Gasket, Damper Appelez-nous -
202 D7749902 D7749902q Appelez-nous -
211 D7821168 Back, Inner Frz Appelez-nous -
232 D7795826 Knob, Control (wht) Appelez-nous -
242 10862701 Cover-control Appelez-nous -
282 D7547411 Control-damper Appelez-nous -
292 C8902601 Insert, Control Appelez-nous -
332 D7788201 Insulation Appelez-nous -
342 D7822403 Bottom, Cont. Box Appelez-nous -
351 D7838302 Cover, Supply Air Appelez-nous -
391 B8386602 Gasket Appelez-nous -
401 B5636301 Cap Appelez-nous -
412 M0216539 Screw Appelez-nous -
421 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

462 A3044208 Spacer Damper Appelez-nous -
492 B8345401 Gasket, Damper Appelez-nous -
521 D7827402 Cover, Fill Tube Appelez-nous -
532 D7819101 Gasket Air Duct Appelez-nous -
601 C8976102 Gasket, Air Block Appelez-nous -
611 C8976201 Clamp Appelez-nous -
642 C8977301 Clamp Appelez-nous -
652 WP489474 Screw 1``   (Replaces: M0211021) In-Stock Immediately $ 8.55

832 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

842 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

852 C8992302 Brkt-control Cover Appelez-nous -
1532 R0161092 Assy, Control-fz Special Order $ 226.99

1801 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

1802 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

2141 A3189335 Gasket Foam Appelez-nous -
2411 10655902 Evap Cover- E Ct Appelez-nous -
2601 D7786901 Cover, M.k Air Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

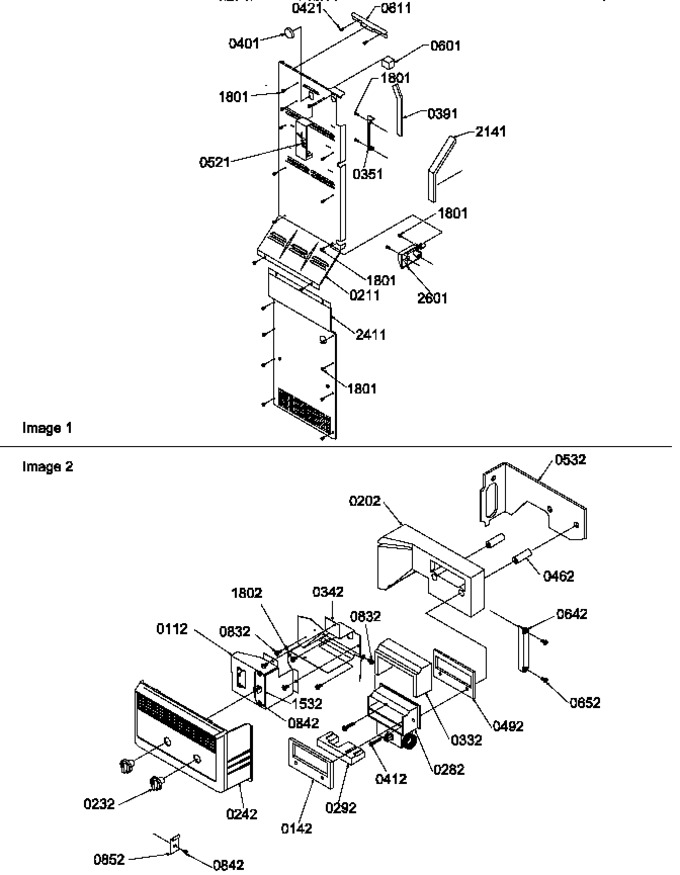

Diagram for SG19SL (BOM: P1193702W L)
