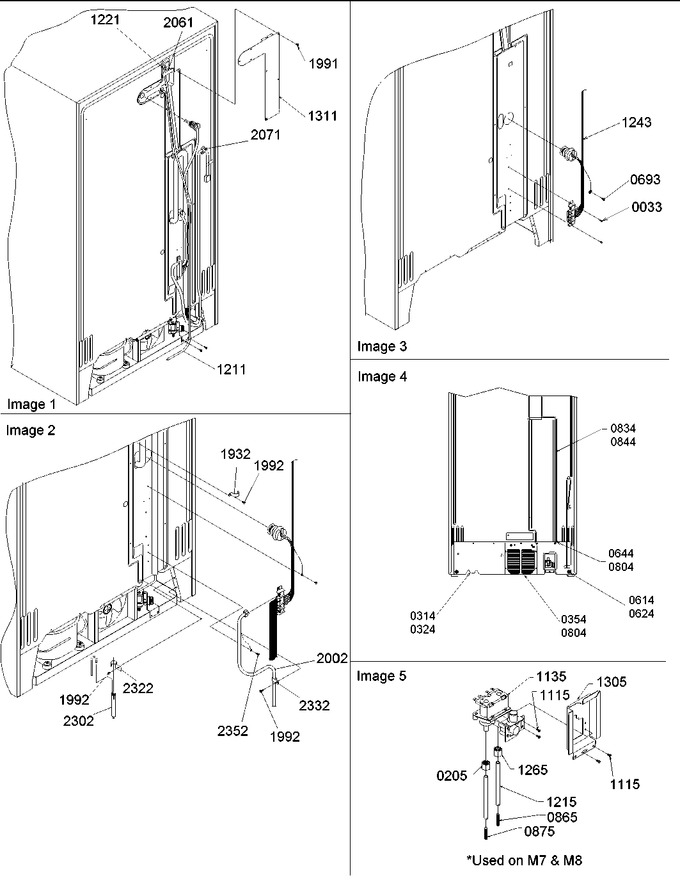

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 314 | 12041616 | Assy, Mc Back |
|
- | |||||
| 324 | M0219704 | Screw |
|
- | |||||
| 354 | 12039903 | Back, M.c. |
|
- | |||||
| 614 | WP489474 | Screw (Replaces: M0220634) |
|
Immediately | $ 8.55 | ||||
| 624 | C8960601 | Foot, Outer Case |
|
- | |||||
| 644 | M0108001 | Clamp, Tube |
|
- | |||||
| 693 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| 804 | M0227217 | Screw, Sm |
|
- | |||||
| 834 | 10178405 | Cover, O.c.back |
|
- | |||||
| 844 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 1211 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 1215 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 1221 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 1243 | 12072602 | Harness, Cabinet |
|
- | |||||
| 1311 | 10178505 | Cover - Wire |
|
- | |||||
| 1932 | B5794201 | Clamp |
|
- | |||||
| 1991 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 1992 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 2002 | 10916505 | Cord-power |
|
- | |||||
| 2061 | A3189336 | Gasket, Foam |
|
- | |||||
| 2071 | WPM0104106 | Clip (Replaces: M0104106) |
|
$ 8.17 | |||||
| 2302 | WPB2150504 | Drier (Replaces: B2150504) |
|
$ 136.98 | |||||
| 2322 | 10547002 | Clip, Drier |
|
- | |||||
| 2332 | M0103904 | Clamp, Speed |
|
- | |||||
| 2352 | WP489399 | Screw, Ca (Replaces: M0239216) |
|
$ 7.30 | |||||
| NOTE: | Xnote: For Water Filter And Water Valves For M1, M2, M3, M4, M5, M6, M9, & M10 See Page 24 & 25. |
|
- | ||||||
| NI | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 |
