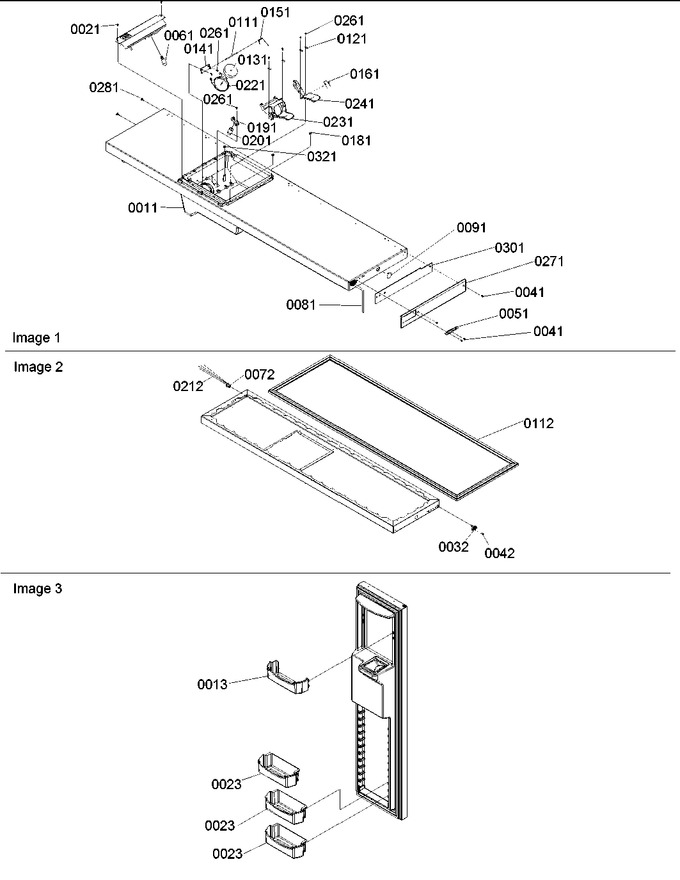

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12309901L | Assy, Frz Door (almond) Sxs |
|
- | |||||
| 13 | 12311802 | Shelf, Frz Door |
|
- | |||||
| 21 | M0216517 | Screw |
|
- | |||||
| 23 | 12311904 | Bucket, Frz Door |
|
- | |||||
| 32 | R0181181 | Closure-e Door (Replaces: 12113203) |
|
Immediately | $ 7.55 | ||||
| 41 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 42 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 51 | C8972406 | Stop, L Door |
|
- | |||||
| 61 | W10857122 | Light Bulb (Replaces: M0360001) |
|
$ 14.52 | |||||
| 72 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 81 | WPB5705307 | Tubing, Plastic (Replaces: B5705326) |
|
$ 13.05 | |||||
| 91 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 111 | A1061501 | Pin, Chute Door |
|
- | |||||
| 112 | R9800047 | Assy,fz Dr Gasket(white) |
|
- | |||||
| 121 | A1061601 | Retainer, Ice Arm |
|
- | |||||
| 131 | B8380701 | Insulation, Chute Door |
|
- | |||||
| 141 | B8380801 | Brkt-chute Door |
|
- | |||||
| 151 | B8380901 | Spring,chute Door |
|
$ 7.18 | |||||
| 161 | B8385401 | Spring, Return |
|
- | |||||
| 181 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 13.14 | |||||
| 191 | C8972501 | Retainer Door Delay |
|
- | |||||
| 201 | C8973602 | Delay, Door |
|
$ 49.84 | |||||
| 212 | Y00000000 | See Note Note: Foamed In Place Not Replaceable. |
|
- | |||||
| 221 | 10246601 | Kit,chute Dr No.3 |
|
- | |||||
| 231 | 12102102 | Arm-1 Ice Actuator |
|
- | |||||
| 241 | 10872108 | Arm, Water Actuator (almond) |
|
- | |||||
| 261 | M0211116 | Screw, Sm |
|
- | |||||
| 281 | M0311603 | Plug, Button (almond) |
|
- |
