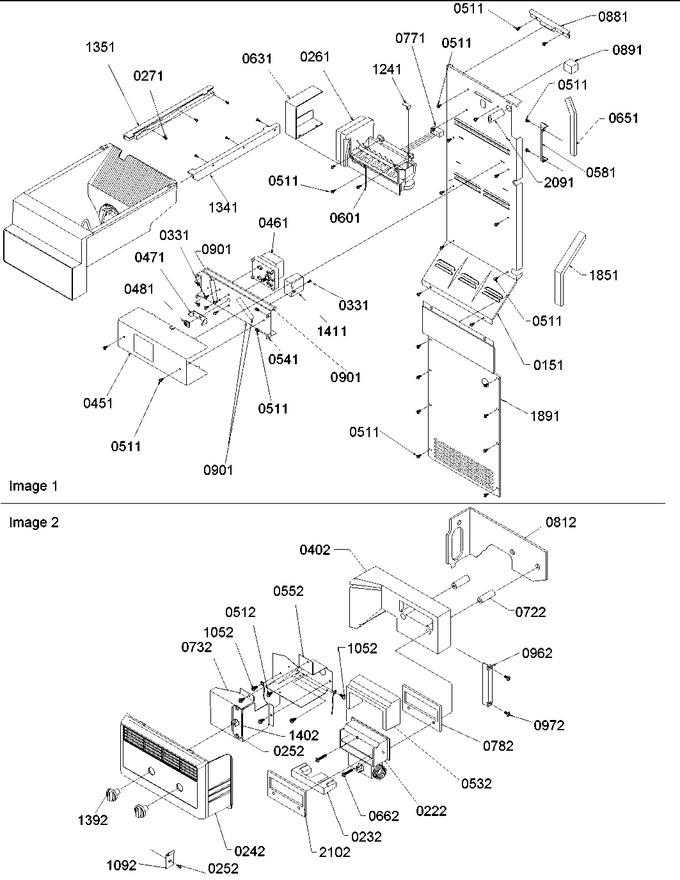

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 151 | D7821174 | Inner Fz Back-pnt |
|
- | |||||
| 222 | D7547411 | Control-damper |
|
- | |||||
| 232 | C8902601 | Insert, Control |
|
- | |||||
| 242 | 10862711 | Cover, Control |
|
- | |||||
| 252 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 261 | D7824706Q | Ice Maker (Replaces: D7824705) |
|
Immediately | $ 167.35 | ||||
| 271 | M0213529 | Screw |
|
- | |||||
| 331 | WPW10139210 | Screw, Tc (Replaces: M0226528) |
|
$ 8.03 | |||||
| 402 | 10176602 | Air Duct, Waxed |
|
- | |||||
| 451 | D7788818 | Cover-auger Mtr |
|
- | |||||
| 461 | 10114804 | Kit, Auger Motor |
|
- | |||||
| 471 | 10114901 | Driver (ice Maker) |
|
$ 1.61 | |||||
| 481 | WPM0223101 | Nut, Locking (Replaces: M0223101) |
|
$ 8.06 | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 512 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 532 | D7788201 | Insulation |
|
- | |||||
| 541 | 12364901 | Support, I/m Motor |
|
- | |||||
| 552 | D7822406 | Box, Control Btm |
|
- | |||||
| 581 | D7838302 | Cover, Supply Air |
|
- | |||||
| 601 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 631 | D7820401 | Cover Im |
|
- | |||||
| 651 | B8386602 | Gasket |
|
- | |||||
| 662 | M0216539 | Screw |
|
- | |||||
| 722 | A3044208 | Spacer Damper |
|
- | |||||
| 732 | D7868606 | Box, Control Top |
|
- | |||||
| 771 | D7824601 | Harness |
|
$ 57.59 | |||||
| 782 | B8345401 | Gasket, Damper |
|
- | |||||
| 812 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 881 | C8976201 | Clamp |
|
- | |||||
| 891 | C8976102 | Gasket, Air Block |
|
- | |||||
| 901 | A3030305 | Gasket-per Ft |
|
- | |||||
| 962 | C8977301 | Clamp |
|
- | |||||
| 972 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 1052 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 1092 | 12414701 | Brkt, Cont Cover |
|
- | |||||
| 1241 | B5720301 | Clip |
|
- | |||||
| 1341 | D7849904 | Glide, Freezer Rh |
|
- | |||||
| 1351 | 67005375 | Glide-l Fz (Replaces: D7849903) |
|
$ 312.82 | |||||
| 1392 | D7795826 | Knob, Control (wht) |
|
- | |||||
| 1402 | R0161092 | Assy, Control-fz |
|
$ 226.99 | |||||
| 1411 | W10613606 | Capacitor (Replaces: C8931605) |
|
Immediately | $ 86.59 | ||||
| 1851 | A3189335 | Gasket Foam |
|
- | |||||
| 1891 | 10655902 | Evap Cover- E Ct |
|
- | |||||
| 2091 | A3127414 | Ext. Fill Tube |
|
- | |||||
| 2102 | 10383201 | Gasket, Damper |
|
- | |||||
| NOTE: | Xnote: Not All Parts Warranted As An Assembly. Must Order Piece Parts With The Exception Of Module & Motor Assy, Mold & Heater Assy And Thermostat, Which Are |
|
- | ||||||
| NI | 10526701 | Clamp, Wire |
|
- |
