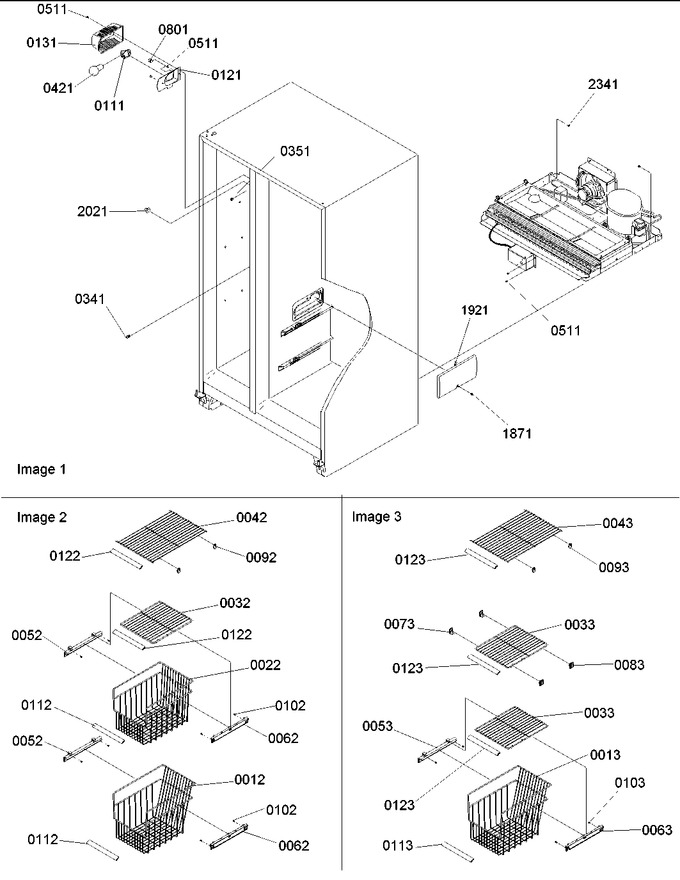

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12314702		Basket, Frz 13``		Appelez-nous	-
22	12314802		Basket, Frz 12``		Appelez-nous	-
32	12353304		Shelf, Sta Frz		Appelez-nous	-
42	12363401		Shelf, Stationary		Appelez-nous	-
52	12015102		Rail, Shelf (lt)		Appelez-nous	-
62	10972802		Rail, Shelf (rt)		Appelez-nous	-
92	C8973801		Support, Frz Shelf				$ 8.35
102	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
111	D7714407		Socket-light		Appelez-nous	-
112	12314101		Trim, Basket/shelf		Appelez-nous	-
121	D7753503		Plate-light Socket		Appelez-nous	-
122	12314102		Trim, Basket/shelf		Appelez-nous	-
131	D7786603		Shield, Light		Appelez-nous	-
341	M0322202		Tie Wire		Appelez-nous	-
351	M0580007		Grommet, Screw		Appelez-nous	-
421	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
801	B5733302		Clip, Ground		Appelez-nous	-
1871	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
1921	Y10270101		Cover-light		Appelez-nous	-
2021	M0560005		Support		Appelez-nous	-
2341	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
