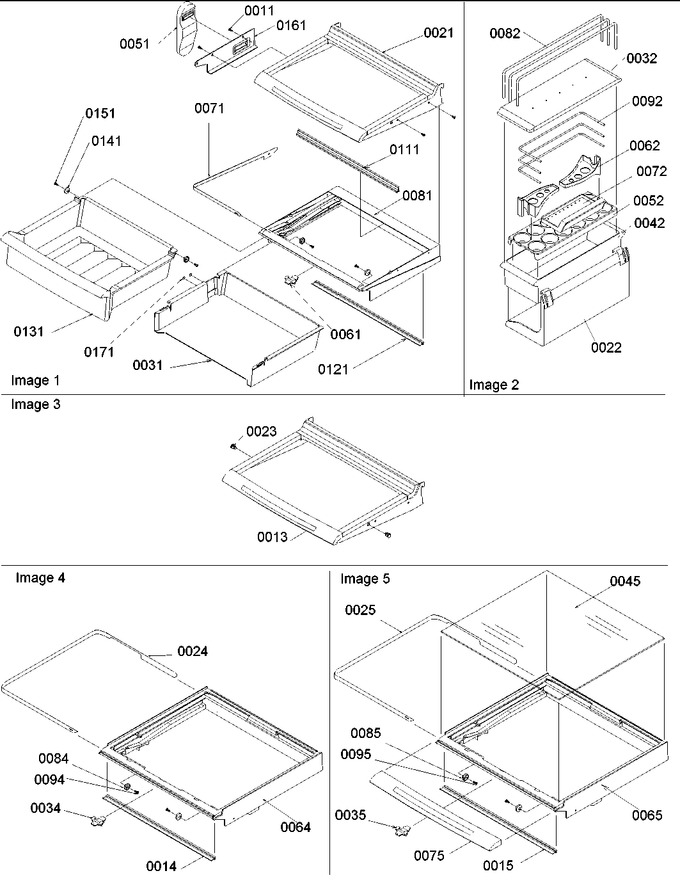

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0213129		Screw		Appelez-nous	-
13	10809723		Shelf-split Glide		Appelez-nous	-
13	10809528		Assy, Full Glide Shelf		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
21	10809606		Shelf, Full Stat		Appelez-nous	-
22	10992304		Rack, Utility		Appelez-nous	-
23	10875101		Stop, Shelf		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
25	10882701		Band, Crisper		Appelez-nous	-
31	10784001		Sleeve,deli		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	10852501		Slide, Crisper/deli		Appelez-nous	-
35	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10423129		Bin-utility		Appelez-nous	-
45	Y10370066		Glass, Shelf		Appelez-nous	-
51	10872701		Gasket, Deli		Appelez-nous	-
52	10436506		Tray, Egg				$ 8.28
61	10852501		Slide, Crisper/deli		Appelez-nous	-
62	12103905		Snugger, Door Shelf		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
65	10782901		Frame,crisper		Appelez-nous	-
71	10986401		Band, Deli		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
75	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783803		Frame, Deli		Appelez-nous	-
82	12310201		Retainer, Ref Bucket		Appelez-nous	-
84	10481001		Roller, Pan				$ 10.99
85	10481001		Roller, Pan				$ 10.99
92	12310203		Retainer, Frz Bucket		Appelez-nous	-
94	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
95	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
111	10876302		Director-deli		Appelez-nous	-
121	10873802		Extr, Rear Deli		Appelez-nous	-
131	10784201		Pan, Deli		Appelez-nous	-
141	10481001		Roller, Pan				$ 10.99
151	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
161	10872601		Manifold, Deli		Appelez-nous	-
171	M0051701		Pad-bumper		Appelez-nous	-
