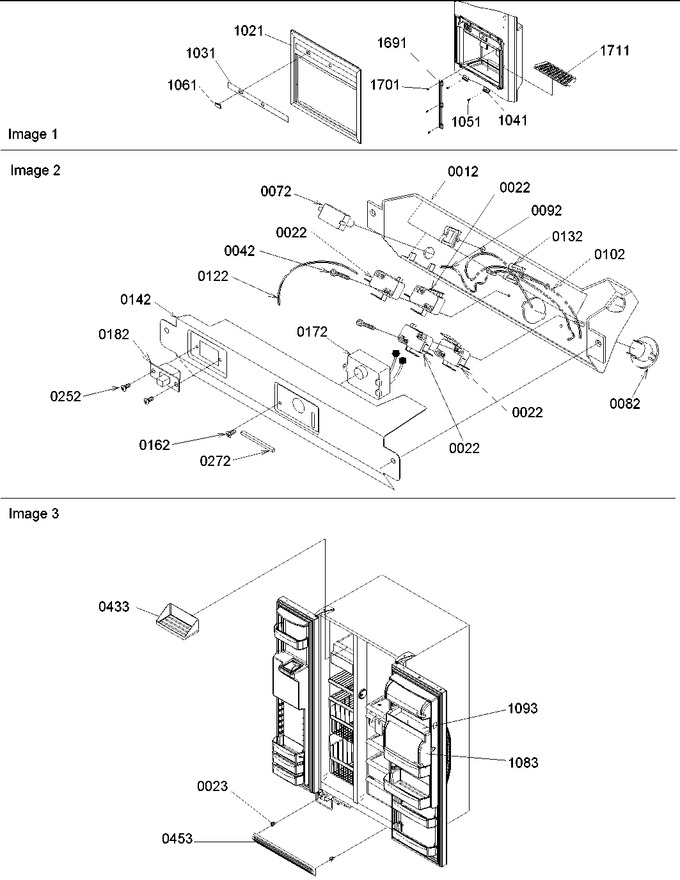

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10323305 | Bracket, Elec Mtg |
|
- | |||||
| 22 | 12419601 | Switch, Limit |
|
- | |||||
| 23 | M0117303 | Clip, Grille |
|
$ 5.65 | |||||
| 42 | M0237809 | Screw, T.f. |
|
- | |||||
| 72 | 10166101 | Switch-light Cavity |
|
$ 6.49 | |||||
| 82 | 10131702 | Socket, Light |
|
- | |||||
| 92 | D7726590 | Wire-jumper |
|
- | |||||
| 102 | D7726593 | Wire Jumper |
|
- | |||||
| 122 | D7726592 | Wire-jumper |
|
- | |||||
| 132 | B5667304 | Wire Clip |
|
- | |||||
| 142 | 10131801 | Cover-elect Brkt |
|
- | |||||
| 162 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 172 | D7854104 | Switch-photosensitive |
|
- | |||||
| 182 | 10166002 | Switch-crushed/cube |
|
- | |||||
| 252 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 272 | A3030365 | Gasket |
|
- | |||||
| 433 | 10870802 | Shelf, Ice Cream |
|
- | |||||
| 453 | 12321810 | Kit, Toe Grille (alm) |
|
- | |||||
| 1021 | 12280002 | Facade-l Disp |
|
- | |||||
| 1031 | 10984650 | Insert, Facade (almond) |
|
- | |||||
| 1051 | M0216517 | Screw |
|
- | |||||
| 1061 | 12043807 | Cap-almond Switch |
|
$ 464.24 | |||||
| 1083 | 12424301 | Assy, Chiller |
|
- | |||||
| 1093 | 12309402 | Shelf, Snack |
|
- | |||||
| 1691 | 12335602 | Extension, Cavity |
|
- | |||||
| 1701 | M0216517 | Screw |
|
- | |||||
| 1711 | D7750609 | Grille, Sump L |
|
- |
