SELECT A DIAGRAM

01 - Back Unit

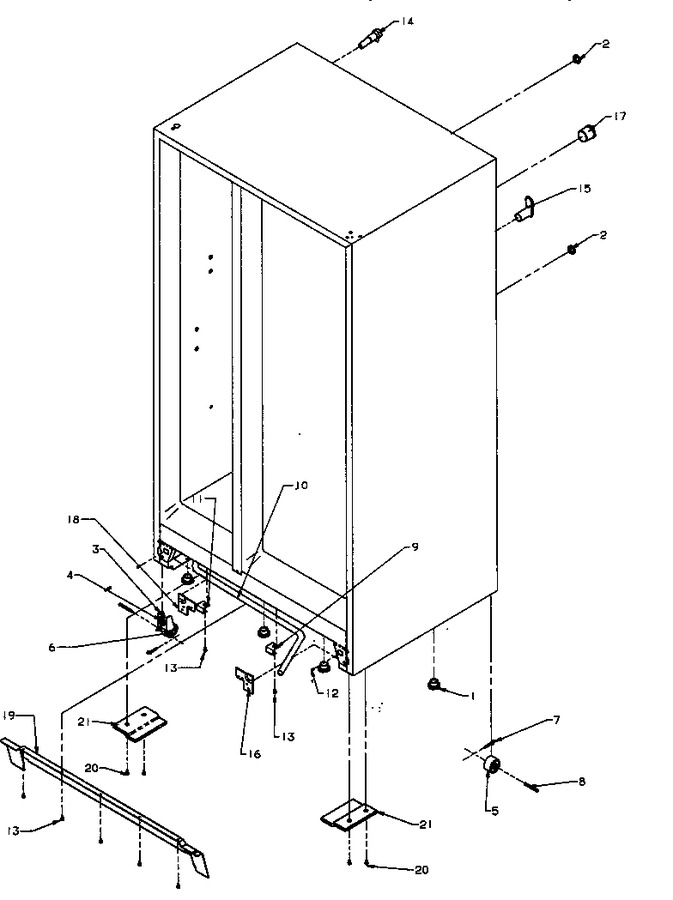

02 - Drain Tube, Rollers And Cabinet Back


03 - Fz Door


04 - Fz Door Hinge And Trim Parts


05 - Fz Evap And Air Handling


06 - Fz Shelving And Ref Light


07 - Ice Maker Assy


08 - Machine Compartment


09 - Ref Door


10 - Ref Door Hinge And Trim Parts


11 - Ref Shelving And Drawers


12 - Ref, Fz Controls And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 47.85
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	M0585206		Clip, Wire		Appelez-nous	-
10	10505101		Tube, Drain		Appelez-nous	-
11	M0102303		Clamp		Appelez-nous	-
12	M0204339		Screw Bolt K		Appelez-nous	-
13	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
14	10277304		Assy, Fill Tube		Appelez-nous	-
15	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
16	10860101		Strip, Bot Hinge Tap		Appelez-nous	-
17	10187501		Tunnel Wire		Appelez-nous	-
18	10860102		Strip, Bot Hinge Tap		Appelez-nous	-
19	10508104		Baffle, M.c. Air		Appelez-nous	-
20	WP3400094		Screw   (Replaces: M0253942)				$ 9.26
21	10508001		Support, Mach Comp.		Appelez-nous	-
NI	A4554806		Snap Bushing		Appelez-nous	-
NI	10527501		Clip, Tube		Appelez-nous	-
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
