Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A3127412 Ext. Fill Tube Appelez-nous -
2 D7824706Q Ice Maker   (Replaces: D7824702) In-Stock Immediately $ 167.35

3 D7806201 Pan, Ice Appelez-nous -
4 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

5 10244901 Coupling Appelez-nous -
6 4318047 Valve-water K   (Replaces: D7712603) In-Stock Immediately $ 74.09

7 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

8 10496301 Brkt, Water Val. Appelez-nous -
9 WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21

10 681390 Screw   (Replaces: M0251015) Special Order $ 13.71

11 D7875201 Arm, I.m. Shut-off Appelez-nous -
12 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

13 B5720301 Clip Appelez-nous -
14 WPM0104106 Clip,cord   (Replaces: M0104101) Special Order $ 8.17

15 WPM0114003 Clip, Speed   (Replaces: M0114003) Special Order $ 11.60

16 A1055101 Spring, Antikink Appelez-nous -
18 M0560005 Support Appelez-nous -
19 D7839703 Rack, Juice V Appelez-nous -
20 C8986123 Insert, Juice Rack Appelez-nous -
21 A3124301 Plug Appelez-nous -
25 WP627843 Ejector   (Replaces: R0183119) Special Order $ 87.78

26 WP628356 Cup, Water Fill/bearing   (Replaces: R0156839) Special Order $ 53.75

27 R0156629 Assy, Mold & Heater Appelez-nous -
28 WP2182124 Stripper, Ice   (Replaces: R0183120) Special Order $ 90.35

29 WP627985 N/a See Notes-thermostat   (Replaces: R0161060) Special Order $ 114.64

30 WP2315522 Retainer   (Replaces: R0191094) Special Order $ 11.60

31 D7824706Q Ice Maker   (Replaces: R0167201) In-Stock Immediately $ 167.35

32 B8391802 Bracket, I/m Appelez-nous -
33 M0211116 Screw, Sm Appelez-nous -
34 D7826301 Harness, Mod. Im Appelez-nous -
36 D7820401 Cover Im Appelez-nous -
38 WP2195914 Support   (Replaces: R0183121) Special Order $ 109.80

39 R0186041 Screw Appelez-nous -
40 R0186040 Screw Appelez-nous -
41 WP628379 Clip, Thermal Fuse   (Replaces: 10319801) Special Order $ 11.10

NI 10590301 Instructions-installations Appelez-nous -
NI B8374701 Clip, Water Valve Appelez-nous -
NI M0102301 Clamp Appelez-nous -
NI M0311301 Plug Button Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

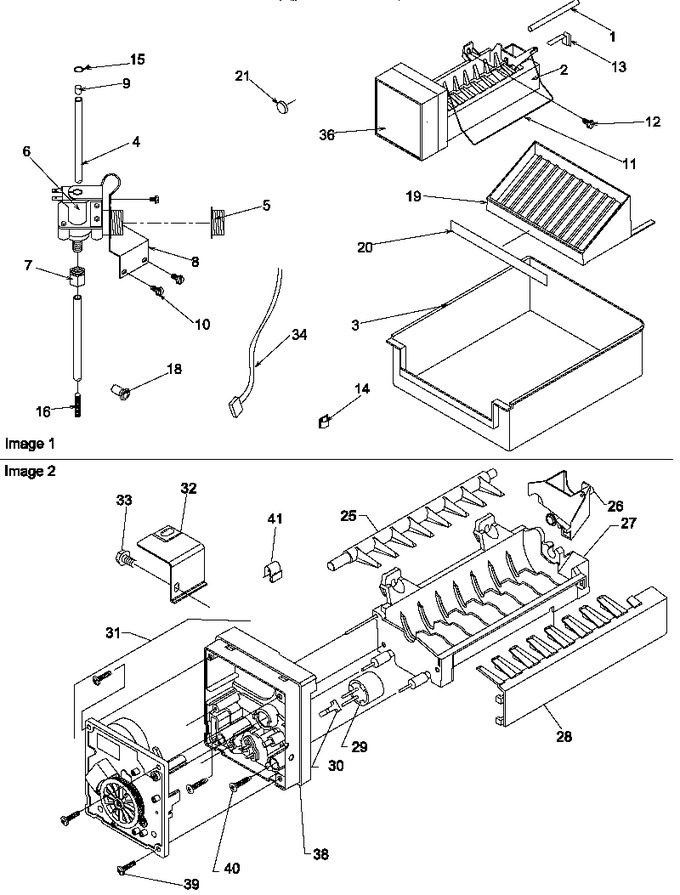

Diagram for SRI25S2L (BOM: P1194001W L)
